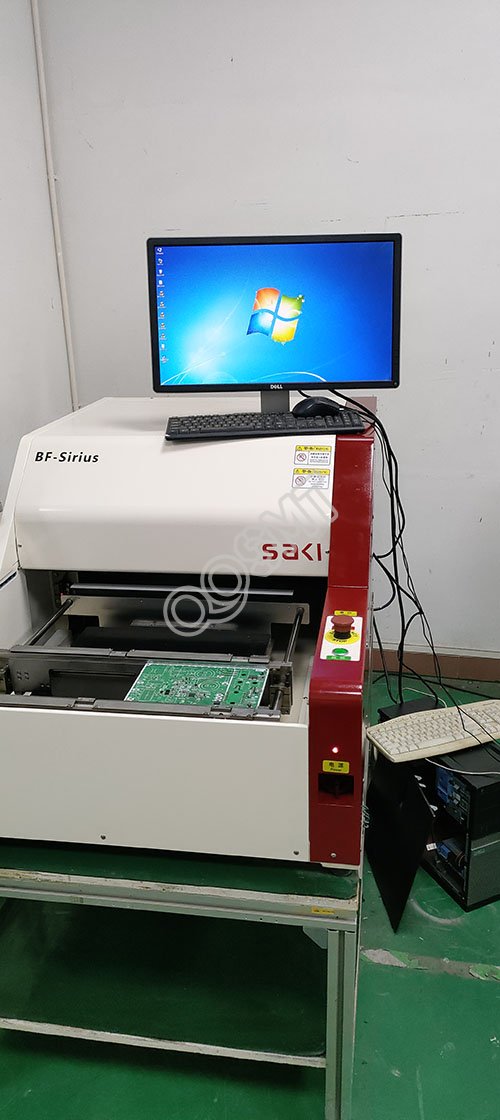

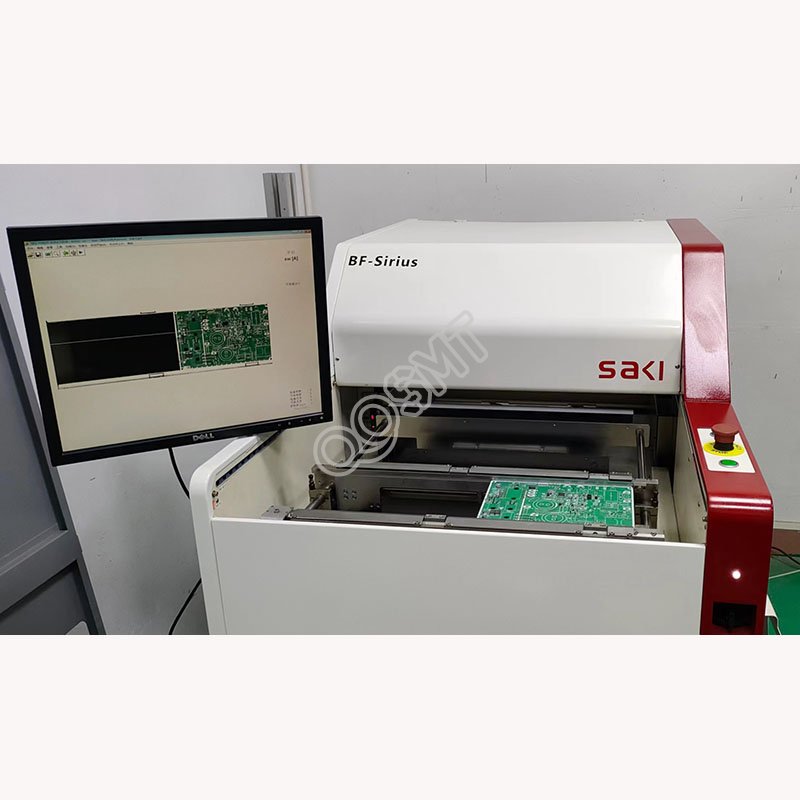

SAKI AOI BF-Sirius Inspection Machine

Model: BF-Sirius

Resolution: 18μm

Board Size: 50×50 - 460×500mm, 2×2 - 18×20in

Board Thickness: 0.6 - 2.5mm, 24 - 100mils

Board Warp: +/-2mm, 79mils

PCB Clearance: Top: 40mm, 1.57in Bottom: 60mm, 2.36in

Rotated Component Support: Available for 0 - 359°rotation (unit of 1°)

Inspection Categories:

Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Ab- sence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function.





Tact Time*1 *2(460×500mm):    Approx. 18sec.

Image Scanning Time*1 (460×500mm) : Approx. 10sec.

Camera(Image Processing):  Line color CCD camera

Lighting: LED lighting system

Operating System: Windows XP / Windows 7 English Version

Optional System: BF-Editor / BF-RP1 / BF-View

Optional: 2D Barcode Recognition, Journal Printer, OK/NG Signal Out

*1 If PCB size is smaller than 460x500mm, Image scannig time will be shorter than this values.

*2 Including Image Scanning Time.



System Requirements

Electric Power Requirement: Single Phase ～100 - 120V / 200 - 240V +/-10%, 50/60Hz

Power Consumption: 700VA

Air Requirement: Not needed

Usage Environment: 15°C(59F) - 30°C(86F) / 15 - 80%RH (Non-condensing)

Dimensions W x D x H (Main body) : 800 × 1280 × 600mm ,31.50 × 50.39 × 23.62in

Weight (Excluding Monitor and PC): Approx. 175 kg, 386lbs
