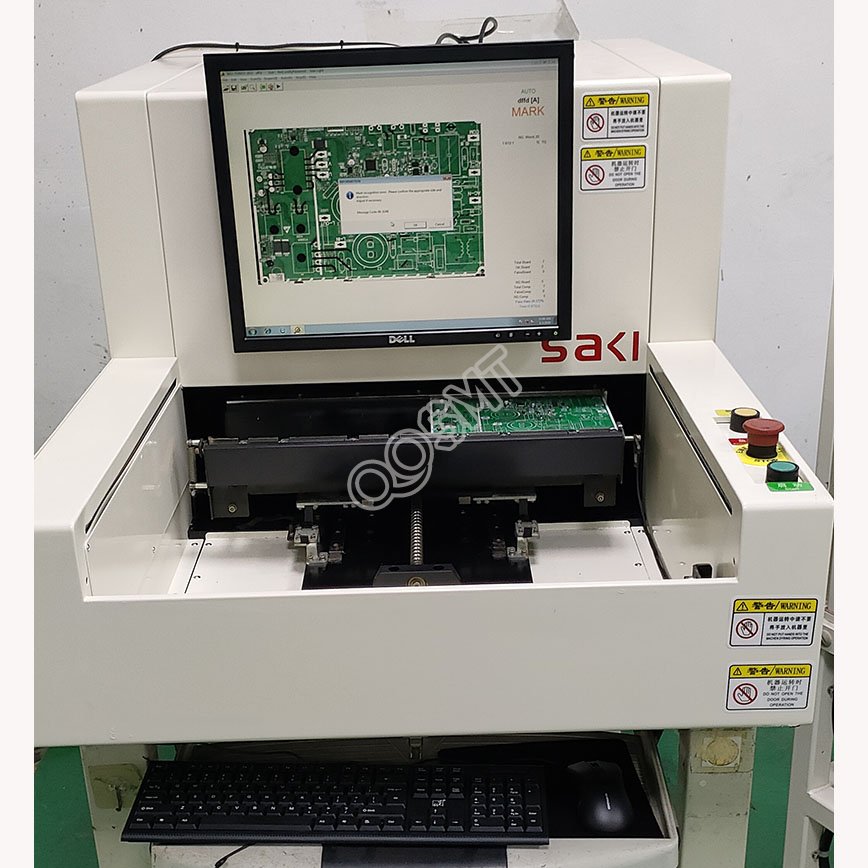

SAKI AOI BF-Voyager Inspection Machine

System specifications



Model: BF-Voyager

Check substrate size range: 53×60-460×500mm

Substrate thickness range: 0.6-5.0mm

Substrate flatness: +/-2mm

Clear height above and below the base plate: Above the base plate: 40mm Below the base plate: 60mm

Part rotation check: 0-359° rotating parts can be checked (unit is 1°)

Check items:

Missing parts, offset, sideways, tombstones, inversions, polar opposites, wrong parts, bridging, dirt contamination, Wuxi, less tin, empty soldering, warped components, warped IC legs, OCR: optical character recognition, etc. . Post-printing process, no solder paste, too much solder paste, dirt contamination, surface scratches, short circuits, solder paste offset, bridging, etc.

Scanning speed 460×500mm: about 19 seconds

Standard inspection speed: 3s/10,000 window

Resolution: 18μm

Camera (image processing): Color linear CCD

Lighting: LED lighting

Track width adjustment: manual

Operating system: Windows XP / Windows 7 (English version)



system requirement



Power supply: AC100-120V, 200-240V, 800VA, 50/60Hz

Air pressure: not required

Ambient temperature/ambient humidity: 15℃-30℃/15-80% RH (no frost)

Overall dimensions: W760×D1250×H575mm

Weight: 130kg
