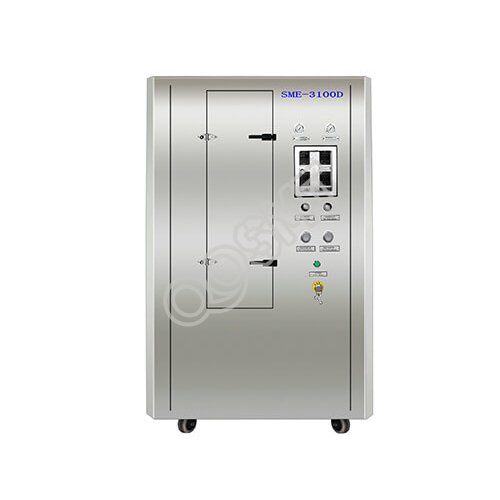

SMT Screen Cleaning Machine SME-3100D


Maximum screen size 1200 x 1200 x 40 mm
Cleaning time 3~5min
Drying time 3~5min
Brand Name: QOSMT
Model: SME-3100D
Condition: New

* We will reply you within 24 hours.

Payment Methods

Machine Introduction:
SME-3120D is designed to improve the cleaning efficiency while cleaning two screens of the special screen cleaning machine. Mainly used in relatively easy to clean the ink and mesh larger screen cleaning. The machine uses compressed air as the driving force, 360 ° rotation spray cleaning and rinsing way, effectively cleaning the printing plate after the residual ink to ensure that the screen screen plate and mesh cleaning; SME-3120D corresponding to the screen size of 1200x1200mm.
Machine Introduction:
1.the use of special stencil placement, while cleaning 2 stencils to improve cleaning efficiency.
2.for easy to clean the PCB ink or other ink screen.
3.the full use of compressed air as energy, do not use electricity, no explosion, fire and other potential security risks.
4.the overall use of stainless steel body, anti-acid corrosion, durable, beautiful appearance.
5.a key operation, cleaning, rinsing, drying automatically set by the set time.
6.cleaning, rinsing can be used separately with different solutions, more suitable for complex cleaning requirements.
7.multi-level precision filtration system, the solution recirculation.
8.equipped with automatic liquid, drainage system.
9.since the row of exhaust, connecting the factory pipeline, eliminating the screen cleaning shop odor, to protect the working environment, in line with environmental requirements.
10.reduce the printing defects by 10%, significantly improve the printing quality, reduce rework probability.
11.to improve the screen cleaning workshop environment, reduce the solvent volatile odor, to protect the health of workers.
12.cleaning solvent cycle repeated use, reduce cleaning costs, reduce the direct discharge of solvent pollution.

Machine Specifications:

project

SME-3120D specifications

Maximum screen size

1200 x 1200 x 40 mm (Lx W x H) x 2 sheets

Tank capacity

50L

Cleaning time

3~5min

Rinse time

1~2min

Drying time

3~5min

Air consumption

800~1000L/min

Gas source

0.5~0.7Mpa

Outlet size

Φ124 × H30 (mm)

filtering system

1mm / 100um / 1um three filters

Cleaning method

Spray cleaning + spray rinse + high pressure gas drying

Machine size

L1300 x W1550 x H 2050(mm)

Machine weight

500KG
