SMT Automatic solder paste mixer Tin mixer
Mixing ability: 0-500g X 2Pot
Time Set: 1s-99m99s
Size: 410*410*490mm
Payment Methods
Running speed: motor speed 1400RPM secondary rotation 400RPM
Voltage: 220V/50HZ 40W
Mixing ability: 0-500g X 2Pot
Time Set: 1s-99m99s
Size: 410*410*490mm
Weigth: 42KG

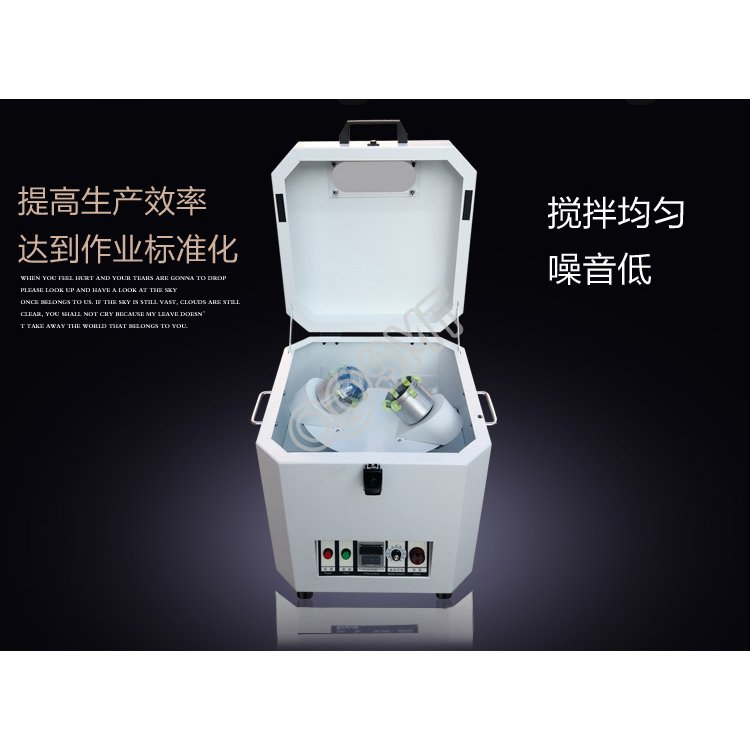

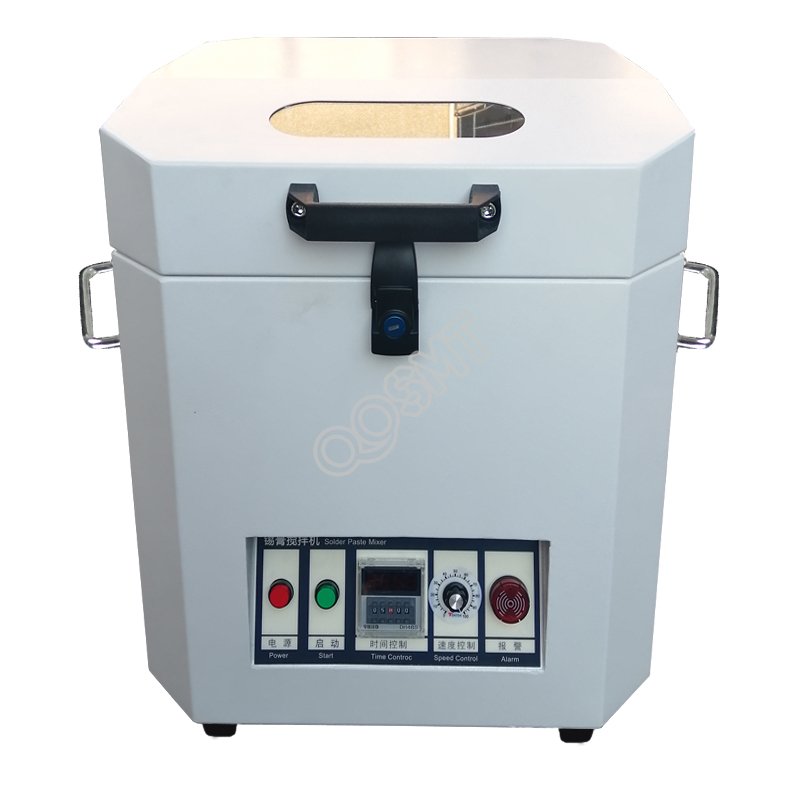

Introduction to solder paste Mixer:
The mixer is the centrifugal force generated by revolution of cooperation and male produced by the rotation of the rotor into a 45 degree Angle, make the tank of solder paste continuously downward movement, which is located in the bottom of the tube of the solder paste from the surrounding to tank campaign, the formation of a tornado funnel of mixing action, solder paste can be smoothly will stir to soften, deaeration, and achieve the appropriate viscosity, After mixing the solder paste has good wetting, uniform diffusion, so that the back welding to achieve welding performance.
Characteristics of solder paste mixer:
1. This product has high degree of automation, stable performance, simple operation and easy to understand, high safety factor, simple and quick maintenance.
2, unique shape design, beautiful, generous, practical, the use of advanced surface spraying process.
3, the stirring principle is based on the motor revolution and rotation of the stirring mode, do not need to remove the frozen paste ice; The solder paste can be returned to the temperature in a short time, while stirring evenly, defoaming can be used. Small vibration amplitude and low noise.
4, suitable for each brand of 500g tin paste, can stir two cans at the same time, can save stirring time, improve production efficiency.
5, in the process of mixing, the tin paste box does not need to be opened, so that the tin paste will not have oxidation or absorption of water.
6, close stirring can fix the operation time, can ensure the solder paste soft (Q) stability and mixing old and new solder paste, can also obtain more active new solder paste.
7, the machine adopts time relay control, simple operation, high reliability.
8. The tin paste is placed at 45 degrees and rotates along the axis line, so that the tin paste will no longer adhere to the lid; Stirring also removes bubbles.
Maintenance of solder paste mixer:
1. The mixer is a precise mechanical equipment, and regular maintenance will prolong the service life of the mixer.
A. The machine uses fully enclosed bearings to keep the machine clean.
B. The belt of the rotation device is not durable goods, and should be replaced in time if damaged.
Matters needing attention:
1. It is strictly prohibited to carry out mixing operation when the cover is opened or the door is not locked.
2. When the machine is running, there is some vibration, so we should put the body in a stable and solid place. If the machine has abnormal reaction in operation, turn off the power immediately.
Check before all parts of the body stop working.
