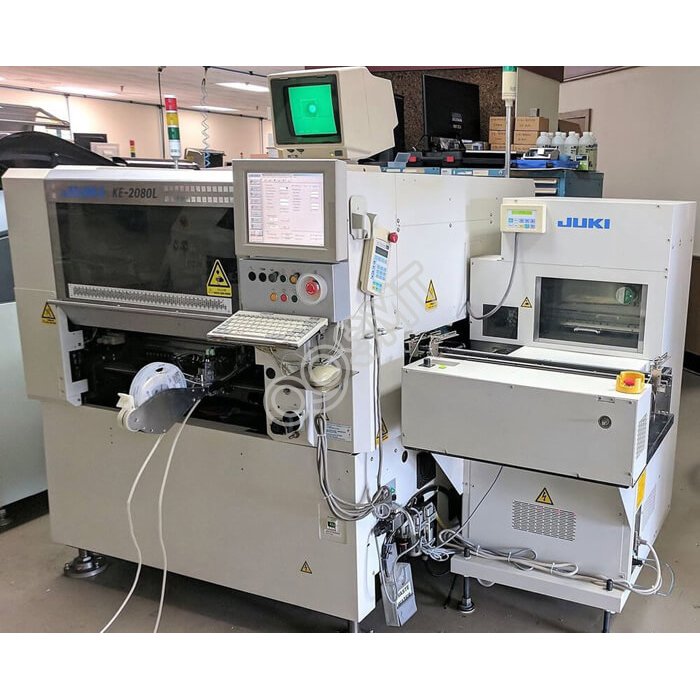

JUKI 2080 Pick and Place Machine SMT KE-2080 Chip Mounter
Applicable Components: 0402
Board size:330×250mm
Feeder inputs:80
placement capacity:16,000CPH
Board size:330×250mm
Feeder inputs:80
placement capacity:16,000CPH
Brand Name:
JUKI
Model:
KE-2080
Condition:
Used
Payment Methods
High Speed JUKI Pick And Place Machine KE-2080
16,000CPH: chip (laser centering / IPC 9850)
4,600CPH: IC (vision centering with optional MNVC)
One multi-nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
High Speed Flexible Mounter KE-2080
15,400CPH: chip (laser centering / IPC9850)
1,850CPH: IC (vision centering / effective tact),
4,860CPH with MNVC option.
One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
From 0402 (01005) to 74mm square components or 50×150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
16,000CPH: chip (laser centering / IPC 9850)
4,600CPH: IC (vision centering with optional MNVC)
One multi-nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
High Speed Flexible Mounter KE-2080
15,400CPH: chip (laser centering / IPC9850)
1,850CPH: IC (vision centering / effective tact),
4,860CPH with MNVC option.
One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
From 0402 (01005) to 74mm square components or 50×150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
