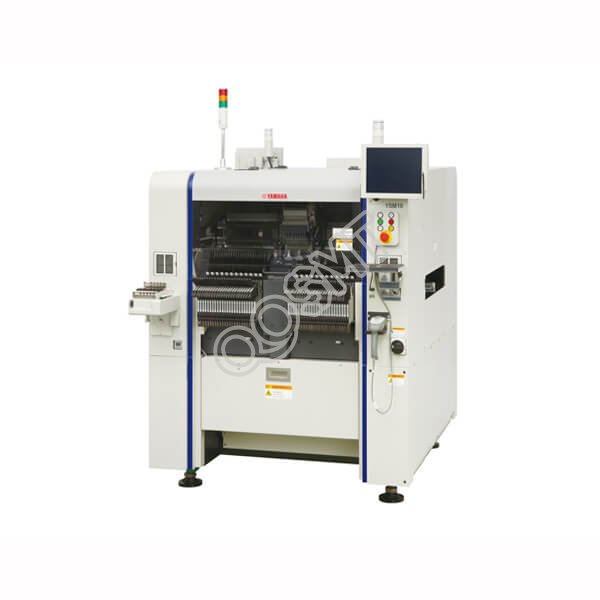

Yamaha YSM10 Chip Mounter SMT Pick And Place Machine
Speed: 46,000 CPH
Applicable Components:03015- W 55mm x L 100mm
Weight:1270KG
Dimension:L 1,254 x W 1,440 x H 1,445 mm
Applicable Components:03015- W 55mm x L 100mm
Weight:1270KG
Dimension:L 1,254 x W 1,440 x H 1,445 mm
Brand Name:
YAMAHA
Model:
YSM10
Condition:
New / Used
Payment Methods
YAMAHA YSM10 is a new chip mounter*1 that is the world's fastest in its class*2 at 46,000CPH*3, will be available for purchase from February 1, 2017. This new addition to the line-up is a compact, high-speed model with space-saving qualities, and provides a combination of component compatibility and versatility. In addition to the high-end ultra-high-speed modular Z:TA-R YSM40R, and the upper-middle class all-round versatile high-efficiency modular Z:LEX YSM20, this new release enables the YSM series line-up to provide a range of optimum lines designed for a variety of production formats and scale sizes.
The YSM10 is newly developed based on the three "Ones" concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of three models of the YS12 type into one platform.
While in pursuit of the ideal concept – a 1-head solution with versatility from small chips to large components, the world's fastest speed in its class, and without the need for head replacement - the new model also has a high-speed general-purpose head similar to that used in the Z:LEX YSM20, and a new generation servo system etc. creating a high-class model with the latest technology.
Simultaneously, the specifications of all three current models of the YS12 series have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12; the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.
In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration of the common functionalities of the two high level machines, the Z:TA-R YSM40R and the Z:LEX YSM20 with their e-Vision for automatically creating and tracking component data, Smart Recognition for easily creating component data from complicated shapes, and Pickup MACS system for automatic correction of the component pickup position.
*1 Surface mounters: Production equipment designed to mount various electrical components onto PCBs (Printed Circuit Boards), which are then incorporated into electronic products.
*2 World's fastest surface mounter in the 1-Beam, 1-Head Class in comparison of mounting capacity (CPH) under optimal conditions. January 10, 2017, Yamaha Motor data
*3 CPH (Chips Per Hour): Total number of chips that can be mounted per hour (unit time). Indicates processing capacity under various conditions.
Yamaha YSM10 Pick And Place Machine
The YSM10 is newly developed based on the three "Ones" concept and provides 1) a combination of a mounting speed that is number one in its class, 2) a one-head-solution that does not require replacement, and 3) an integration of three models of the YS12 type into one platform.
While in pursuit of the ideal concept – a 1-head solution with versatility from small chips to large components, the world's fastest speed in its class, and without the need for head replacement - the new model also has a high-speed general-purpose head similar to that used in the Z:LEX YSM20, and a new generation servo system etc. creating a high-class model with the latest technology.
Simultaneously, the specifications of all three current models of the YS12 series have been integrated into one platform featuring the flexibility and mobility of the compact high-speed modular YS12; the partly simplified version of the compact economy-modular YS12P, and the highly-versatile compact modular YS12F.
In addition, pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration of the common functionalities of the two high level machines, the Z:TA-R YSM40R and the Z:LEX YSM20 with their e-Vision for automatically creating and tracking component data, Smart Recognition for easily creating component data from complicated shapes, and Pickup MACS system for automatic correction of the component pickup position.
*1 Surface mounters: Production equipment designed to mount various electrical components onto PCBs (Printed Circuit Boards), which are then incorporated into electronic products.
*2 World's fastest surface mounter in the 1-Beam, 1-Head Class in comparison of mounting capacity (CPH) under optimal conditions. January 10, 2017, Yamaha Motor data
*3 CPH (Chips Per Hour): Total number of chips that can be mounted per hour (unit time). Indicates processing capacity under various conditions.
Yamaha YSM10 Pick And Place Machine
| Model | YSM10 | |
| Applicable PCB Dimensions |
L 510 x W 460mm - L 50 x W 50mm * Option: Up to L610 mm available |
|
|
Mounting Capacity (The Company's optimum conditions) |
HM Head (10 Nozzle) Spec. | 46,000CPH |
| HM5 Head (5 Nozzle) Spec. | 31,000CPH | |
| Mounting Accuracy |
In the Company's optimum conditions (standard material used for evaluation) ±0.035 mm (±0.025 mm) Cpk?1.0 (3?) |
|
| Applicable Components |
03015- W 55mm x L 100mm(divided recognition for over W 45mm), H: 15mm or less *Multi camera requirement (optional) for components over 6.5mm in height, or over 12mm square in size |
|
| Number of Component Types | Setting Plate | Max 96 types (8 mm width tape feeder conversion) |
| Tray | 15 types (sATS15 equipment, Max, JEDEC) | |
| Power Supply | 3-phase AC 200/208/220/240/380/400/416 V ±10% 50/60 Hz | |
| Air Supply | 0.45 MPa or more, clean and dry state | |
| External Dimensions (excluding protrusions) | L 1,254 x W 1,440 x H 1,445 mm | |
| Weight | 1,270kg | |
