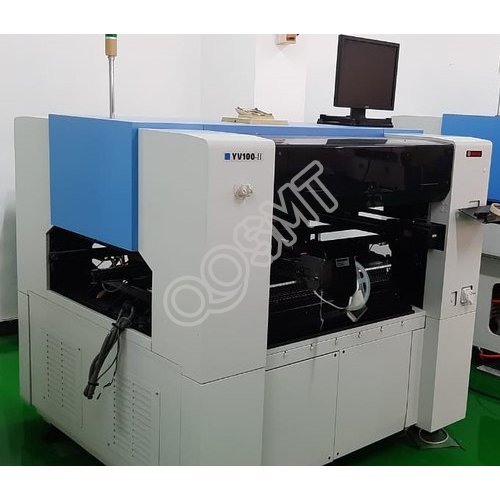

Yamaha YV100II Chip Mounter SMT Used Pick and Place Machine
Patch speed 12000
Substrate size: L600 * W400
weight 1300kg
Dimension: l1650 * w1350 * h1810
Substrate size: L600 * W400
weight 1300kg
Dimension: l1650 * w1350 * h1810
Brand Name:
YAMAHA
Model:
YV100II
Condition:
Used
Payment Methods
Used Yamaha YV100II Chip Mounter roughly 98 years or so equipment,mechanical structure is simple, a casting frame made to ensure durability and stability,the circuit control department is not complicated, easy maintenance. DOS operating system,the menu is relatively simple, easy to operate, a working head, 8 suction nozzle,the size of the material can be posted, you can install a precision camera to improve placement accuracy. The theoretical speed of 14400 points per hour.
Features:
Specifications:
- Component-friendly soft touch mounting
- Mounts components with a piano touch while performing at high-speed. With the newly-designed 8 in-line heads which do not subject components to any shearing stress, it mounts components smoothly at high speed, with unsurpassed mounting reliability
- With 8 in-line heads and multi-view high-speed vision processing
- Compact head for reducing the cycle time
- Compact head can exceedingly save useless actions for picking up and mounting components and achieves the reduced cycle time
- Handling of very small ceramic boards
- Can be adapted to handle very small ceramic boards of up to L15mmxW10mm on request
- Multi-vision recognition
- High-speed vision processing
- This recognition system transports eight picked components over the camera without stopping, performing batch recognition of all components at once using multi-view vision processing, significantly reducing component recognition time
- Handling of long connectors as well
- Recognizes all the leads on a connector at once and checks their pitch before mounting
- Two multi-view cameras
- Due to the adding of a second multi-view camera, the mounter increased its performance
Specifications:
- High-accuracy recognition within +-0.1 mm/chip
- Ensures a mounting accuracy of +-0.1 mm for chips
- High-speed mounting at 0.25 sec. per chip
- Handles very small 1005 chips, SOPs and PLCC84 pins
- With the single-view camera and the precision-head the mounter is capable of mounting QFPs with a lead pitch of 0.5 mm and a total pins of 208
- achieves high-speed mounting of 0.25 second per chip under optimal set-up conditions
