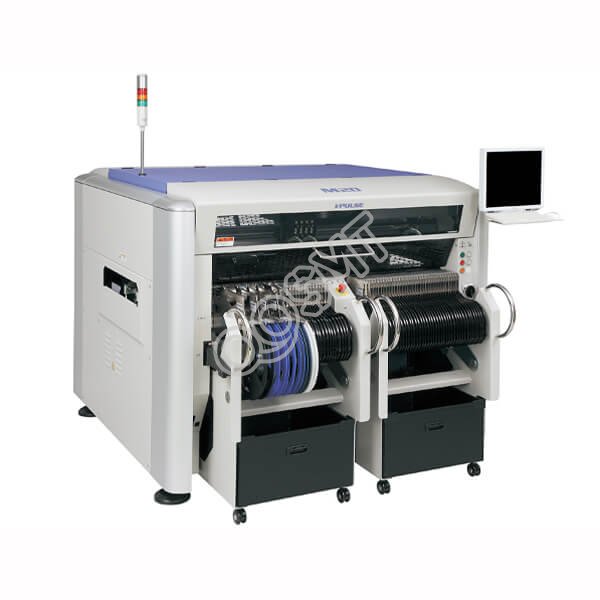

Yamaha M20 Chip Mounter Pick And Place Machine SMT
    • Yamaha M20 Chip Mounter Pick And Place Machine SMT

    Yamaha M20 Chip Mounter Pick And Place Machine SMT


    Speed:30,000 CPH
    Applicable PCB: L1,480 x W510mm
    Weight:1450KG
    Dimension:L1750xD1750xH1420mm
    Brand Name: YAMAHA
    Model: M20
    Condition: New

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    ❙  Features of Yamaha M20 Chip Mounter
    Yamaha SMT machines surface mounter, module type mounting system, Yamaha pick and place machine, Yamaha Chip mounter.
    1. Revolutionary and unique new features included as standard
    2. New Multi-Conveyor System providing the highest large board handling capability
    3. 3D hybrid placement functions
    4. Wide ranging component handling capability and high feeder capacity
    5. Ultimate flexibility and fast & easy setup

    ❙ Specifications of Yamaha M20 Pick And Place Machine SMT

      M20
    Board size(with buffer unused) Min. L50 x W30mm to Max. L1,480 x W510mm*1
    Board size(with input and output buffers used) Min. L50 x W30mm to Max. L540 x W510mm
    Board thickness 0.4 - 4.8mm
    Board flow direction Left to right (Std)
    Board transfer speed Max 900mm/sec
    Placement speed (4 heads + 1 theta) Opt. Cond. 0.15sec/CHIP (24,000CPH)
    Placement speed (4 heads + 4 theta) Opt. Cond. 0.15sec/CHIP (24,000CPH)
    Placement speed (6 heads + 2 theta) Opt. Cond. 0.12sec/CHIP (30,000CPH)*2
    Placement speed (4 heads + 1 theta) IPC9850 19,000CPH
    Placement speed (4 heads + 4 theta) IPC9850 19,000CPH
    Placement speed (6 heads + 2 theta) IPC9850 23,000CPH*2
    Placement accuracy A (μ+3σ) CHIP +/-0.040mm
    Placement accuracy B (μ+3σ) IC +/-0.025mm
    Placement angle +/-180 degrees
    Z axis control AC servo motor
    Theta axis control AC servo motor
    Component height Max 30mm*3 (Pre-placed components: max 25mm)
    Applicable components 0402 to 120x90mm, BGA, CSP, connector, etc.
    Component package 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
    Drawback check Vacuum check and vision check
    Screen language English, Chinese, Korean, Japanese
    Board positioning Board grip unit, front reference, auto conveyor width adjustment
    Component types Max 144 types (8mm tape), 36 lanes x 4
    Transfer height 900 +/- 20mm
    Machine dimensions, weight L1750xD1750xH1420mm, Approx. 1450kg
    Power 3-phase 200/208/220/240/380/400/416/440V +/-10%
    (Transformer included), 50/60Hz
    Max consumption, capacity 1.1kW, 5.9kVA
    Air pressure, consumption 0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.

    *1 Max. 950mm for 6-head configuration

    *2 Optional item
    *3 Board thickness + Component height = Max 30mm
