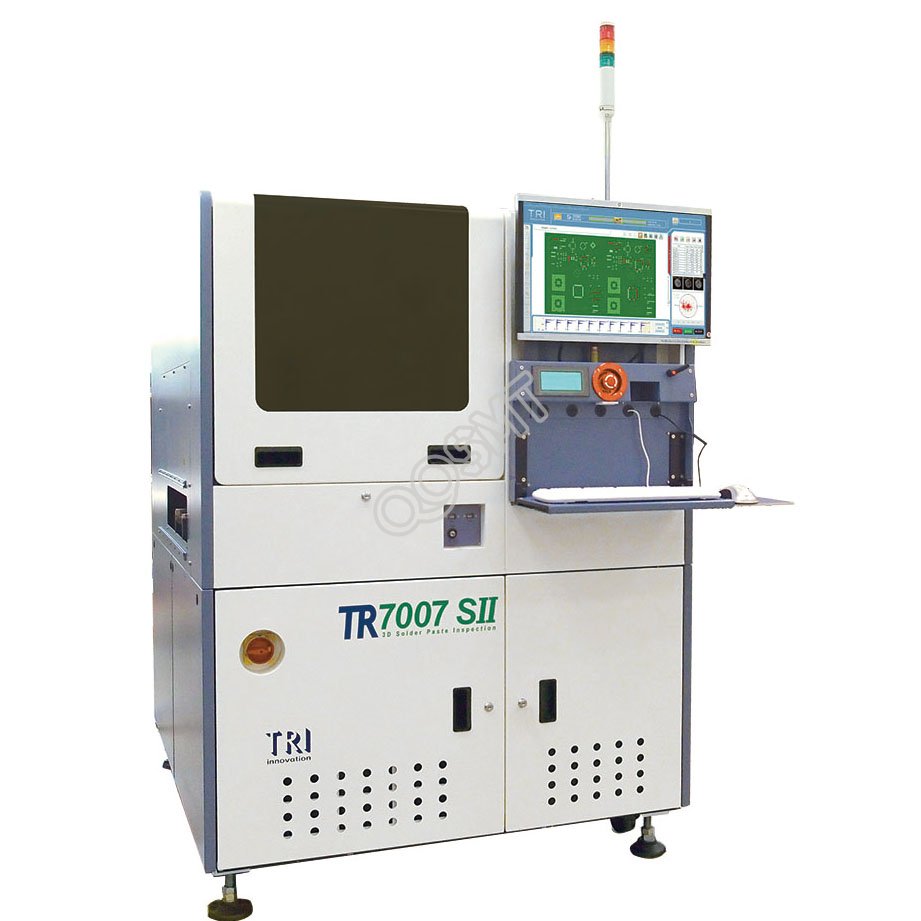

TRI SPI TR7007 SII 3D Solder Paste Inspection
Brand Name:
TRI
Model:
TR7007 SII
Condition:
Used
Payment Methods
Offering inspection speeds of up to 180 cm2/sec, the TR7007 SII is the fastest solder paste inspection system in the industry. This highly accurate inline shadow-free solder paste inspection solution offers full 3D inspection at resolutions of 15 µm or 10 µm. Built on a high precision linear motor platform, the system’s hallmark features include closed loop function, enhanced 2D imaging, auto-warp compensation and fringe pattern technology. Increase capacity without sacrificing additional space with an available dual-lane configuration.
Optical System
| Imaging Method | Dynamic Imaging |
| Camera | 4 Mpix |
| Imaging Resolution | 10 µm or 15 µm (factory setting) |
| Lighting | RGB LED |
| 3D Technology | 2-way Fringe Pattern |
| Field of View |
4 Mpix@ 10 µm: 20 x 20 mm 4 Mpix@ 15 µm: 30 x 30 mm |
Inspection Performance
| Imaging Speed |
4 Mpix@ 10 µm: 80 cm²/sec 4 Mpix@ 15 µm: 180 cm²/sec |
| Height Resolution | 0.4 µm |
| Max. Solder Height |
@ 10 µm: 600 µm @ 15 µm: 550 µm |
Motion Table & Control
| X-Axis Control | Linear Motor and linear scale with DSP-based controller |
| Y-Axis Control | Ballscrew + AC-servo controller |
| Z-Axis Control | Ballscrew + AC-servo controller |
| X-Y Axis Resolution | 0.5 µm |
| Z-Axis Resolution | 1 µm |
Board Handling
| Max PCB Size |
TR7007 SII: 510 x 460 mm TR7007LL SII: 850 x 610 mm |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight |
TR7007 SII: 3 kg TR7007LL SII: 5 kg |
| Top Clearance | 40 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | 3 mm |
| Conveyor Height |
880 – 920 mm * SMEMA Compatible |
Inspection Functions
| Defects |
Insufficient Paste Excessive Paste Shape Deformity Missing Paste & Bridging |
| Measurement |
Height Area Volume Offset |
Dimensions
| WxDxH |
TR7007 SII: 1220 x 1663 x 1620 TR7007LL SII: 1600 x 1813 x 1637 mm Note: not including signal tower, signal tower height 520 mm |
| Weight |
TR7007 SII: 920 kg TR7007LL SII: 1117 kg |
