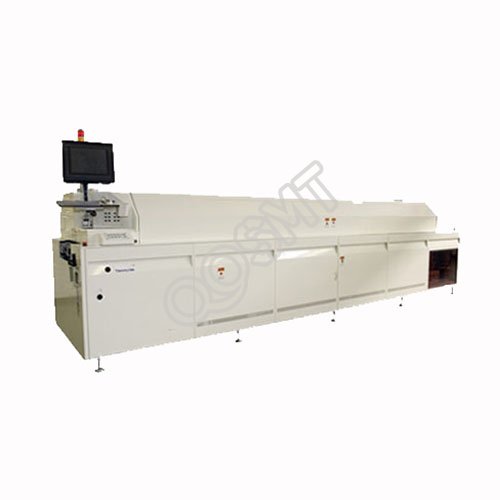

TAMURA N2 Reflow Oven GNV51-7610PM(L)
Nitrogen Reflow Oven
Brand Name:
TAMURA
Model:
GNV51-7610PM
Condition:
Used
Payment Methods
Tamura GNV51-7610PM(L) Nitrogen Reflow Oven Machine Specifications:
| Dimensions | W1550×L7600×H1550 |
| power supply | Three-phase four-wire AC380V |
| compressed air | none |
| Heating zone length | 4.42m |
| length of cooling zone | 1.48m (including 0.3m cooling recovery) |
| power consumption | Starting power 76KVA, stable power 20KVA (no load) |
| nitrogen consumption | Above 400NL/min, above 99.99%, above 0.4-0.7MPa |
| Orbit parallelism | ±1mm |
| Anti-vibration design of track | Excellent (the whole is divided into 4 sections, and there are guide plates at the entrance and exit to facilitate the smooth entry of the substrate into the furnace and smooth discharge) |
| track design | Manual width adjustment device (OP: automatic width adjustment can be upgraded) |
| heat transfer capacity | Excellent (high heating capacity, strong thermal cycle capacity) |
| speed range | 0.5-2.0m/min |
| Temperature regulation accuracy | ± 1℃ |
| electrical control | Centralized control, CD-ROM, automatic switching, timer, alarm |
| Optional accessories | Catalyst, uninterruptible power supply (UPS), O2 concentration meter, anti-bending device, automatic track width adjustment, automatic lubricant addition, water cooler (external) |
