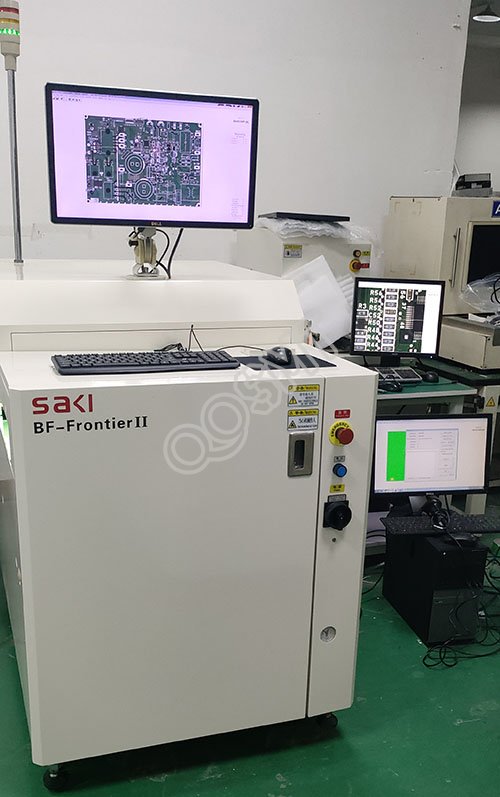

SAKI AOI BF-Frontier II AOI Inspection Machine
Resolution 18μm
Board size:460×500mm
Dimension:850 × 1340 × 1230mm
Board size:460×500mm
Dimension:850 × 1340 × 1230mm
Brand Name:
SAKI
Model:
BF-Frontier II
Condition:
New / Used
Payment Methods
SAKI AOI BF-Frontier II
With a superior resolution of 18μm and scanning line color CCDcamera, BF-Frontier II provide accurate and stable inspectionresults. Solder fillets on components as small as the high densitymounted 0201(0603) chip, as well as IC’s with 0.4mm pitch leadare easily inspected and analyzed.
In-line High Resolution and High Speed AOI
In-line 2D AOI
Max PCB size is 330x250mm for BF-Planet-XII,
500x460mm for BF-FrontierII, 870x686mm for BF-10Z
Scanning time is only 4 seconds(BF-Planet-XII)
Compact body of only 60cm width (BF-Planet-XII)
High Resolution Imaging System
With a superior resolution of 18μm and scanning line color CCD camera, BF-Frontier II provide accurate and stable inspection results. Solder fillets on components as small as the high density mounted 0201(0603) chip, as well as IC’s with 0.4mm pitch lead are easily inspected and analyzed.
High Throughput
BF-Frontier II has Saki’s original alternate scanning system that captures several lighting images in one scanning. Newly developed color capturing system enable to make scanning speed twice faster than previous model. It takes only 10 seconds to capture L-size board [460mm × 500mm]. Overall tact time including inspection also become shortened dramatically.
Advantage of Line Scan Visual InspectionExtra components on the board can be detected only by setting up one inspection window on the whole board. It is realized by the advantage of line scan method.
Coaxial Overhead Light
Soldering condition is inspected by illuminant irradiation of coaxial overhead lighting. Inspection is not affected by shadowing by neighboring tall components, therefore same library is available at any location on the board.
New Interface
Renewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library. And optional new
function KPK, that finds out the difference between surface of
the board and the surface of component automatically, simplifies to detect missing component. This realizes time reduction for in- spection data making at launching production.
FlexibilityBF-Frontier II has 40mm clearance at the top side of the board and 40mm at the bottom side. It enables most of the PCBs with tall components. In addition, BF-Frontier II can be used in any stage of the PCB production process from post-print, post- mounter, and post-flow / re-flow, or manual mounting.
Traceability
Optional function of BF-Frontier II can read all types of Barcode and 2D code on the board. Inspection output is reported with code number. It enables easy SPC data handling and log data management on manufacturing lines.
With a superior resolution of 18μm and scanning line color CCDcamera, BF-Frontier II provide accurate and stable inspectionresults. Solder fillets on components as small as the high densitymounted 0201(0603) chip, as well as IC’s with 0.4mm pitch leadare easily inspected and analyzed.
In-line High Resolution and High Speed AOI
In-line 2D AOI
Max PCB size is 330x250mm for BF-Planet-XII,
500x460mm for BF-FrontierII, 870x686mm for BF-10Z
Scanning time is only 4 seconds(BF-Planet-XII)
Compact body of only 60cm width (BF-Planet-XII)
High Resolution Imaging System
With a superior resolution of 18μm and scanning line color CCD camera, BF-Frontier II provide accurate and stable inspection results. Solder fillets on components as small as the high density mounted 0201(0603) chip, as well as IC’s with 0.4mm pitch lead are easily inspected and analyzed.
High Throughput
BF-Frontier II has Saki’s original alternate scanning system that captures several lighting images in one scanning. Newly developed color capturing system enable to make scanning speed twice faster than previous model. It takes only 10 seconds to capture L-size board [460mm × 500mm]. Overall tact time including inspection also become shortened dramatically.
Advantage of Line Scan Visual InspectionExtra components on the board can be detected only by setting up one inspection window on the whole board. It is realized by the advantage of line scan method.
Coaxial Overhead Light
Soldering condition is inspected by illuminant irradiation of coaxial overhead lighting. Inspection is not affected by shadowing by neighboring tall components, therefore same library is available at any location on the board.
New Interface
Renewed user interface makes it easier to set up inspection data by using pre-installed Saki standard library. And optional new
function KPK, that finds out the difference between surface of
the board and the surface of component automatically, simplifies to detect missing component. This realizes time reduction for in- spection data making at launching production.
FlexibilityBF-Frontier II has 40mm clearance at the top side of the board and 40mm at the bottom side. It enables most of the PCBs with tall components. In addition, BF-Frontier II can be used in any stage of the PCB production process from post-print, post- mounter, and post-flow / re-flow, or manual mounting.
Traceability
Optional function of BF-Frontier II can read all types of Barcode and 2D code on the board. Inspection output is reported with code number. It enables easy SPC data handling and log data management on manufacturing lines.
| Model | SAKI 2D AOI BF-Frontier II |
| Resolution | 18μm |
| Board Size | 50×60 - 460×500mm, 2×2.4 - 18×20in |
| Board Thickness | 0.6 - 3.2mm, 24 - 126mils |
| Board Warp | +/-2mm, 79mils |
| PCB Clearance | Top: 40mm, 1.57in. Bottom: 40mm, 1.57in |
| Rotated Component Support | Available for 0 - 359°rotation (unit of 1°) |
| Inspection Categories | Presence/Absence, Misalignment, Tombstone, Reverse, Polarity, Bridge, Foreign material, Absence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function. |
| Tact Time*1 *2 | Approx. 21sec. (460×500mm) |
| Image Scanning Time*1 | Approx. 10sec. (460×500mm) |
| Camera (Image Processing) | Line color CCD camera |
| Lighting | LED lighting system |
| Transfer Conveyor Method | Flat belt transfer |
| Transfer Conveyor Height | 900+/-20mm, 36+/-0.8in |
| Transfer Conveyor Width Adjustment | Manual |
| Operating System | Windows XP English Version |
| Optional System | BF-Editor / BF-RP1 / BF-Monitor / BF-View |
| Optional | 2D Barcode Recognition, Journal Printer, Automatic Transfer Conveyor Width Adjustment |
| Electric Power Requirement | Single Phase ～100 - 120V / 200 - 240V +/-10%,50/60Hz, 750VA |
| Air Requirement | 0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM |
| Usage Environment |
15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing) |
| Noise Level | 58.3dB |
| Dimensions W x D x H | 850 × 1340 × 1230mm,34 × 53 × 49in |
| Weight | Approx. 450kg, 992lbs |
|
*1 If PCB size is smaller than 460x500mm, Image scannig time will be shorter than this values. *2 Including Image Scanning Time. |
|
