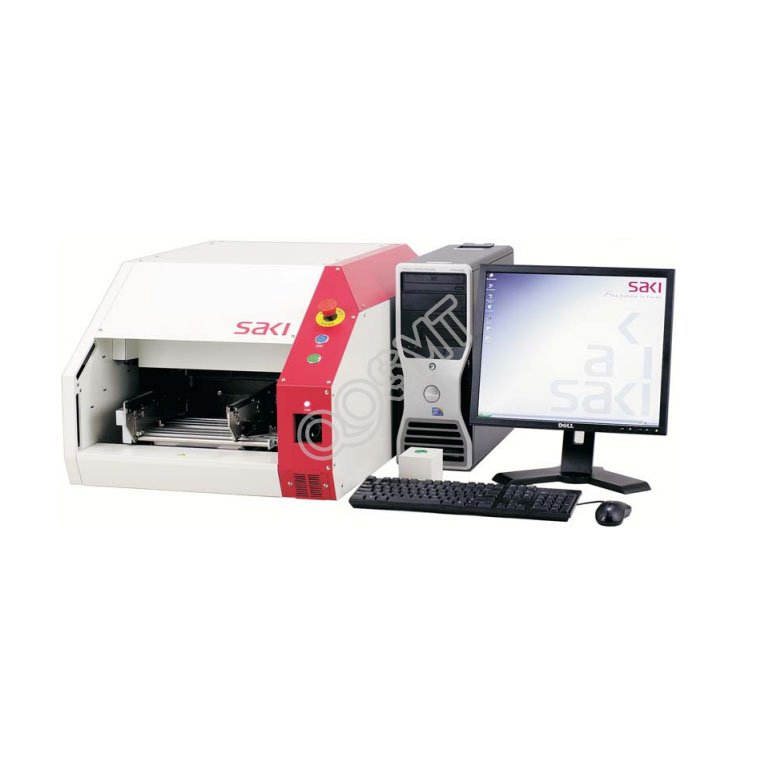

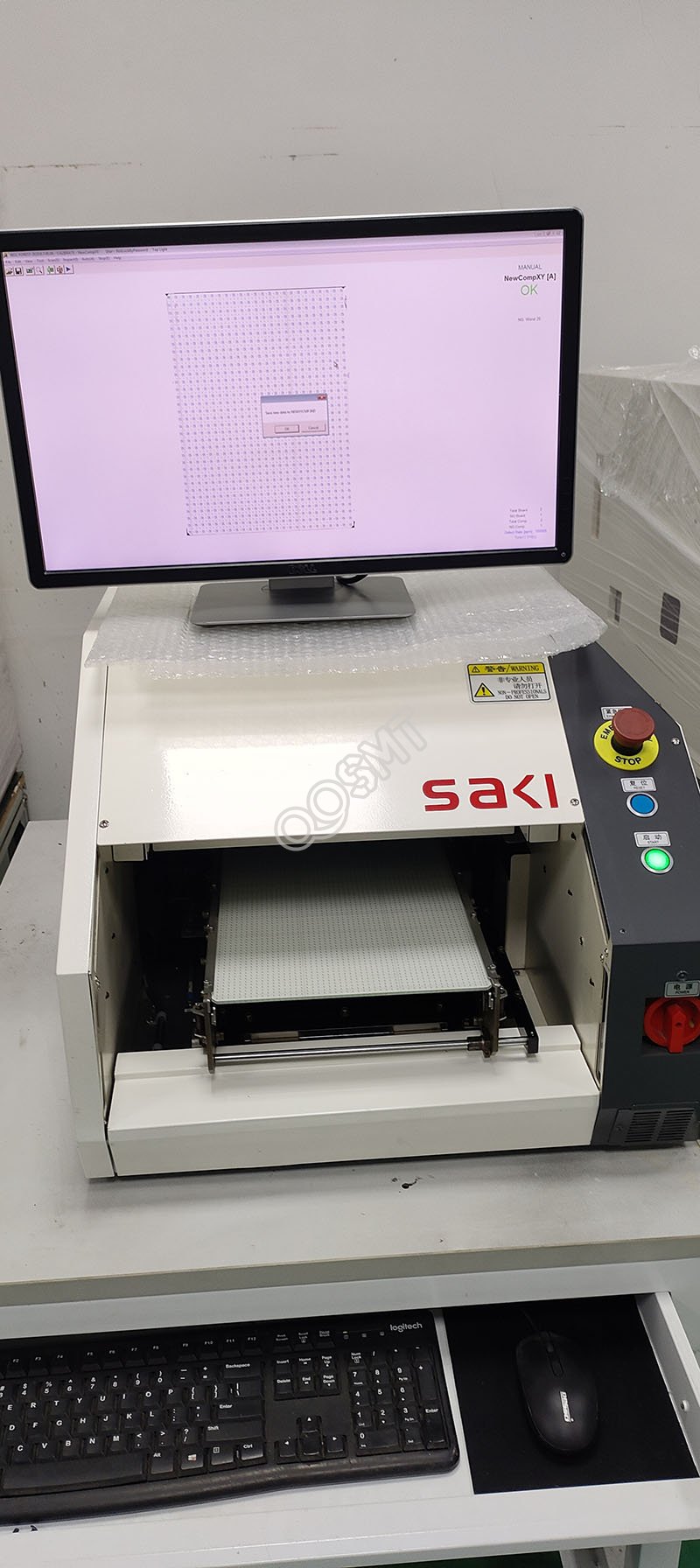

SAKI AOI BF-Comet 10 BF-Comet 18 Inspection Machine

Model	BF-COMET    10	BF-COMET   18
Resolution	10 μm	18 um
Board size	50x50-330x250     mm
Board thickness	0.6-2.5mm,24-100 mils
Board warp	+/-2 mm,79 mils
PCB clearance	Top:40 mm,Bottom:60 mm
Rotated component support	Available for 0-359°rotation (unit of 1)
Inspection categories	Presence/absence,misalignment,tombstone,reverse,polarity,bridge,foreign material,absence of solder. nsufficient solder,lifted lead,lfted chip,and fillet defect.Each defect name can be changed freely by system function.
Tact time *1*2 (250x330 mm)	Approx.18 sec	Approx.13 sec
Image scanning time *(250x330 mm)	Approx.11 sec	Approx.7 sec
Camera	Line color CCD camera
Lighting	LED lighting system
Operating systerr	Windows XP / Windows 7 english version
Optional system	BF-editor/BF-RP1/BF-view
Optional	2D Barcode recognition,journal printer,OK/NG signal out
Optional for BF-Comet 18	External control box

*1 If PCB size is smaller than 250x330 mm,Imagescannig time will be shorter than these values.*2 Including image scanning time.
Installation Specifications


Electric power requirement	Single phase~100-120 V/200-240V+/-10%,50/60 Hz
Power consumption	450 VA	400 VA
Air requirement	Not needed
Usage environment	15°C(59F)-30°C(86F)/15-80%RH  (Non-condensing)
Noise leve	56.5 dB
Dimensions Wx DxH(mainbody)	580x850x452 mm
Weight (main body	Approx.83 kg.183lbs	Approx.80 kg.177lbs
