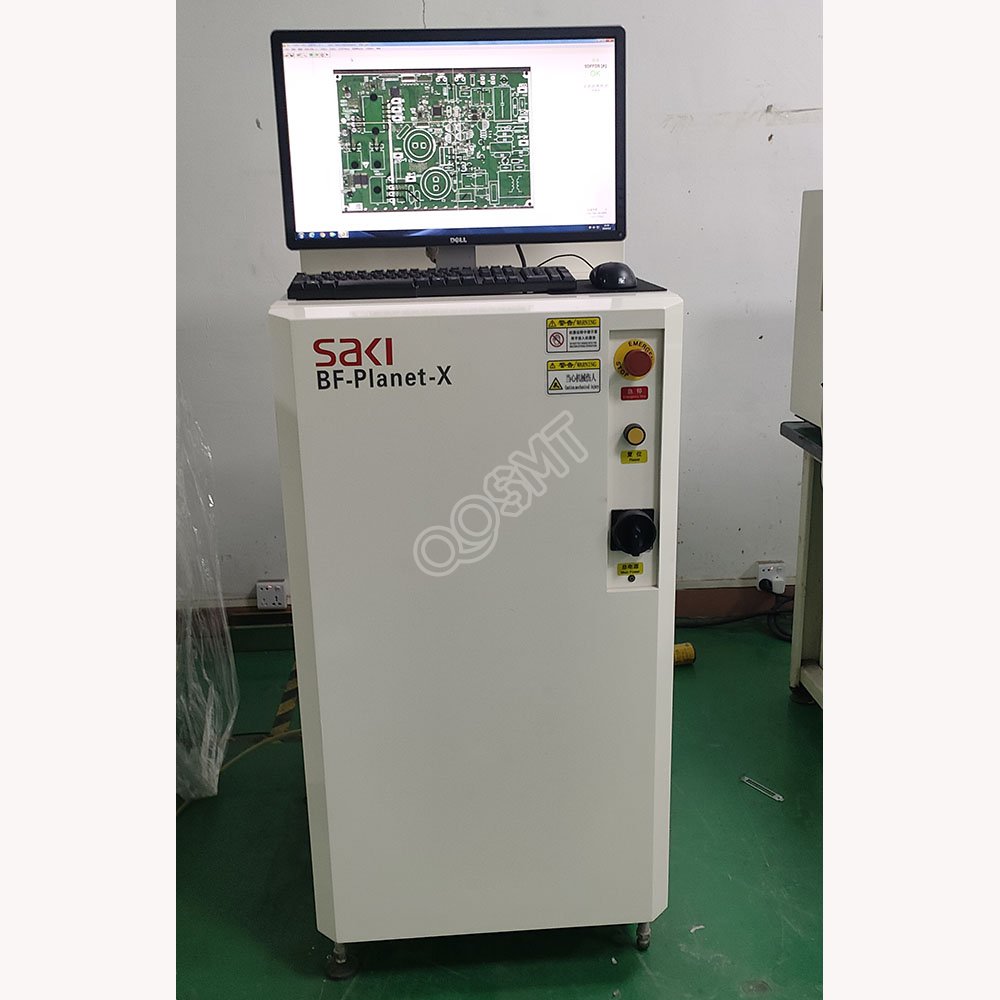

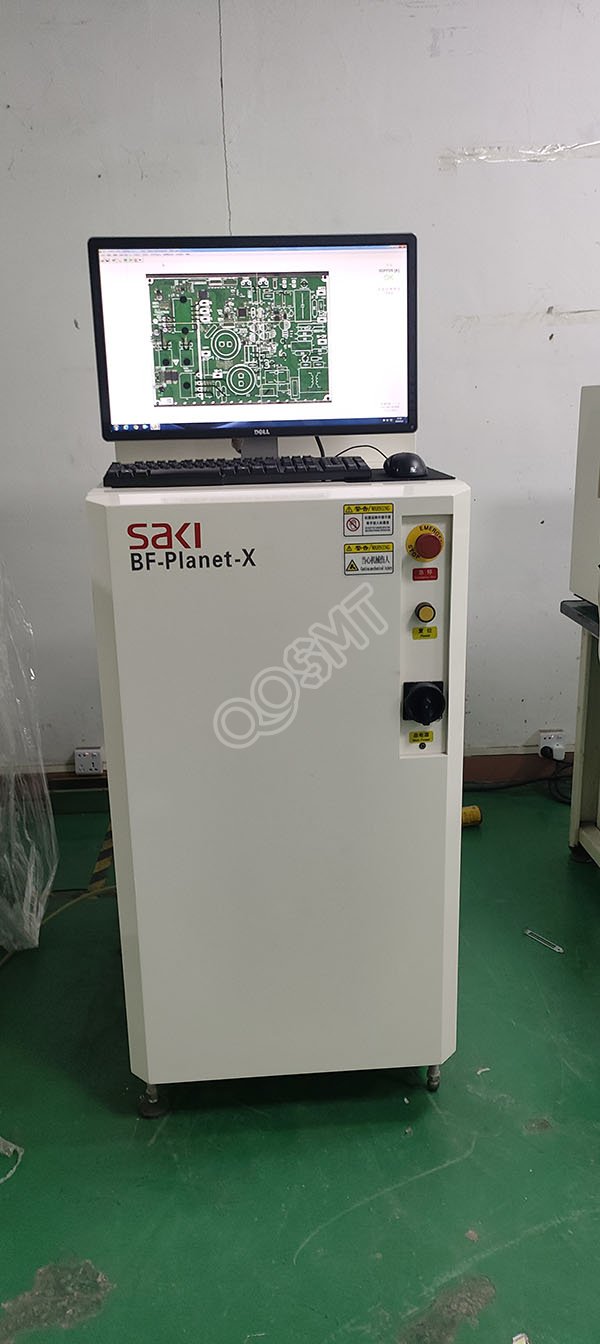

SAKI AOI BF-Planet-X Inspection Machine
    • SAKI AOI BF-Planet-X Inspection Machine

    SAKI AOI BF-Planet-X Inspection Machine


    Brand Name: SAKI
    Model: BF-Planet-X
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    Board Size:  50×60 - 250×330mm, 2×2.4 - 10×13in
    Board Thickness:  0.6 - 2.5mm, 24 - 100mils
    Board Warp:  +/-2mm, 79mils
    PCB Clearance Top:  20mm, 0.8in Bottom: 30mm, 1.2in
    Rotated Component Support:  Available for 0 - 359°rotation (unit of 1°)
    Scanning Time:  Approx. 23sec. (250×330mm)

    Resolution: 10μm
    Camera (Image Processing) :  Line color CCD camera
    Lighting:  LED lighting system
    Transfer Conveyor Method:  Round belt transfer
    Transfer Conveyor Height:  900+/-20mm, 36+/-0.8in
    Transfer Conveyor Width Adjustment : Manual
    Operating System:  Windows 7 English Version
    System Option:  BF-RP1 / BF-Editor / BF-Monitor / BF-View
    Single Phase:  ～100 - 120V / 200 - 240V +/-10%, 50/60Hz, 500VA
    Air Requirement:  0.5MPa, 5L/min (ANR), 73PSI, 0.18CFM
    Usage Environment:  15°C(59F) - 30°C(86F) / 15 - 80% RH (Non-condensing)
    Dimensions: W x D x H 600 × 915 × 1515mm 24 × 36 × 60in
    Weight:  Approx. 300kg, 660lbs
