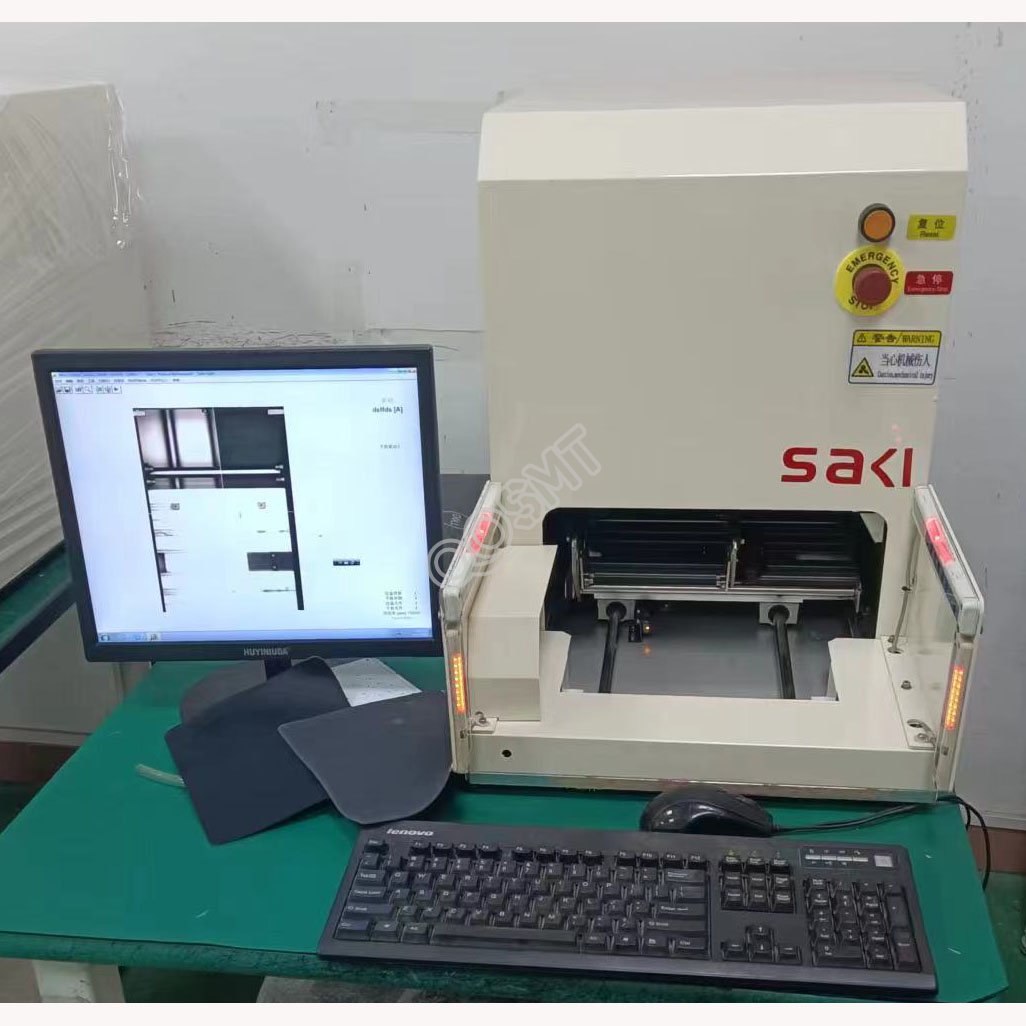

SAKI AOI BF18D-P40 Inspection Machine

System Specifications



Model: BF18D-P40

Board Size: 50×50 - 250×330mm, 2×2 - 10×13in

Board Thickness: 0.6 - 2.5mm, 24 - 100mils

Board Warp: +/-2mm, 79mils

PCB Clearance: Top: 40mm, 1.57in Bottom: 60mm, 2.36in

Rotated Component Support:  Available for 0 - 359°rotation (unit of 1°)

Inspection Categories:

Presence/Absence, Misalignment, Tomb stone, Reverse, Polarity, Bridge, Foreign material, Ab- sence of solder, Insufficient solder, Lifted lead, Lifted Chip, and Fillet defect. Each defect name can be changed freely by system function.



Scanning Time: Approx. 19sec. (250×330mm)

Calculating Time: *Approx. 3 sec./10,000 inspection windows

Resolution: 18μm

Camera(Image Processing): Line color CCD camera

Lighting: LED lighting system

Operating System: Windows 7 English Version System

Option: BF-RP1 / BF-Editor / BF-View

Option: 2D Barcode Recognition, Journal Printer

*Calculating time depends on inspection algorithm.



 System Requirements



Electric Power Requirement: Single Phase ～100 - 120V / 200 - 240V +/-10%, 50/60Hz

Power Consumption: 400VA

Air Requirement: Not needed

Usage Environment: 15°C(59F) - 30°C(86F) / 15 - 80%RH (Non-condensing)

Dimensions W x D x H : 420 × 805 × 565mm (Main body) 16.54 × 31.69 × 22.24in

Weight: Approx. 45 Kg (Excluding Monitor and PC)
