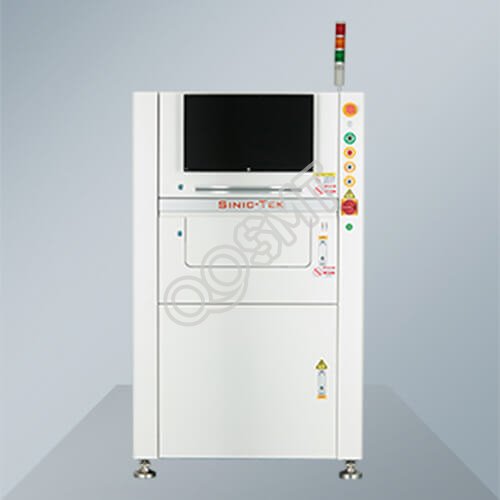

SinicTek 3D Solder Paste Inspection Machine F510

PCB size:470 x470 mm
Dimension:850x1430x1500mm
weight:850KG

Brand Name: SinicTek

Model: F510

Condition: New / Used

* We will reply you within 24 hours.

Payment Methods

TECHNICAL PARAMETERS:

Inspection Principle:Programmable phase contour modulation measurement techniques(PSLM PMP)

Inspection type:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest component: 01005.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height：≤1um （4 Sigma）;volume/acreage：<1%（4 Sigma）.

Maximum Loading PCB Size(X*Y): 470x470mm.

Inspection Speed: 0.42 SEC/FOV.

FiducialDetection Time: 0.3sec/piece.

Maximum inspection height:±450um.

RGB Tune patented technology.

D-lighting patented technology.

Dynamic contour with coaxial telecentric lens perfect processing flexible circuit board testing.

Barcode function with traceability.

Badmark transfer function to mounters.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.
