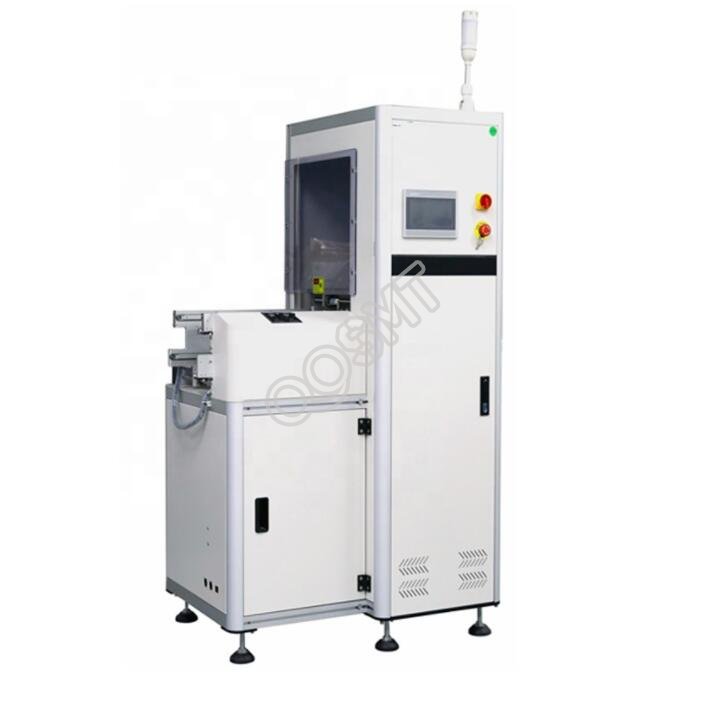

SMT PCB Magazine Ng Type Buffer Stocker Conveyor
Dimension(mm）1000*910*1600 / 1200*990*1600
PCB size（mm） 50*50-330*250 / 50*50-460*330
PCB size（mm） 50*50-330*250 / 50*50-460*330
Brand Name:
Model:
Condition:
Payment Methods
Description
This device can buffer the NG and OK boards from AOI or SPI inspection machines. The OK board will flow into the next program, and the NG board will flow to the upper layer of the machine and send it to the machine for manual confirmation.
Features
1.PLC + LED touch screen control, easy to operate.
2.FIFO: First in, First out, LIFO:Last in, First out and Pass mode.
3.Smooth and precise width adjustment (leadscrew).
4.Fast, smooth and precise search and location.
5.Small footprint. 6.With SMEMA signal.
2.FIFO: First in, First out, LIFO:Last in, First out and Pass mode.
3.Smooth and precise width adjustment (leadscrew).
4.Fast, smooth and precise search and location.
5.Small footprint. 6.With SMEMA signal.
|
Technical Parameters
|
||
|
Model
|
BN-M-TN
|
BN-L-TN
|
|
Dimension(mm）
|
1000*910*1600
|
1200*990*1600
|
|
PCB size（mm）
|
50*50-330*250
|
50*50-460*330
|
|
Number of stocks
|
15pcs
|
20pcs
|
|
Cycle time
|
10s
|
|
|
Power supply
|
AC 110/220V±10V, 50/60HZ
|
|
|
Power
|
Max 250VA
|
|
|
Air pressure
|
4-6bar
|
|
|
Air consumption
|
10itr/min max
|
|
|
Transport height
|
900±20mm(or customer specified)
|
|
|
PCB direction
|
L-R or R-L (optional)
|
|
|
Belt type
|
4MM anti-static flat belt
|
|
|
Weight
|
260kg
|
300kg
|
