Machine Description:

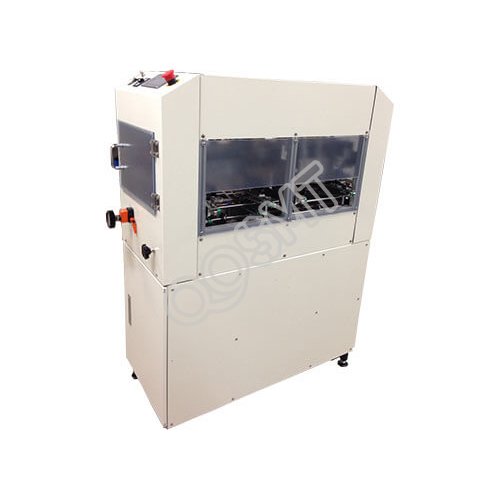

UC-250BV-W PCB surface Cleaning Machine is special designed for dual conveyor SMT lines. Each conveyor has a Bursh + Vacuum cleaning unit and each machine can be adjusted and used individually.
Machine Features:
1.Specially designed for strict PCB surface clean requirement of SMT line.
2.Only for dual conveyor SMT lines.
3.Can clean PCB top side surface with components mounted on the bottom side.
4.Standard equipped Ionizer system, greatly reduce the effect of ESD.
5.No consumable parts. No need to stop SMT lines.
6.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
7.First SMT cleaning machine maker in the world, 10 years cleaner design and production experience.
8.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.
Machine Spec:
Item |
UC-250BV-W Spec |
PCB size |
50﹡50~330﹡250 mm |
PCB thickness |
0.5~2.0 mm |
Conveyor height |
900±25 mm |
Brush |
4 rolls |
Vacuum Unit |
2 sets |
Conveyor direction |
Left→Right or Right→Left |
Conveyor fix side |
Front side fixed or Rear side fixed |
Width adjustment |
Manual |
Ionizer |
Build-in |
Air supply |
0.5Mpa |
Power supply |
AC220V/100V, 50/60Hz,90W |
Dimension |
L460 x W1220 x H1265(mm) |
Weight |
About 200 kg |
