Machine Description:

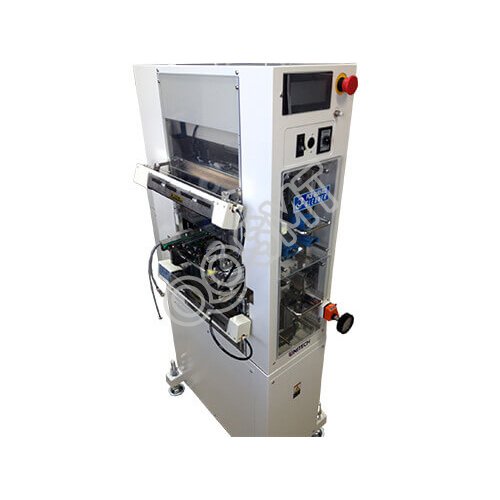

UC-250WM is a double-side PCB cleaning machine. It can clean PCB up and down side at the same time. Top side can be cleaned while bottom side is mounted with SMD parts.
Machine Features:
1.Specially designed for strict PCB surface clean requirement of SMT line.
2.Clean up and Bottom side of Bare PCB simultaneously.
3.Can clean PCB top side surface with components mounted on the bottom side.
4.Standard equipped Ionizer system, greatly reduce the effect of ESD.
5.Contact type clean method, clean up to 99% dusts on PCB.
6.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
7.Patent adhesive roller guarantee its efficient and stable cleaning performance.
8.Especially suitable for miner parts like 0201,01005 and precise parts like BGA, uBGA,CSP etc
9.First SMT cleaning machine maker in the world, 10 years cleaner design and production experience.
10.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.
Machine Spec:
Item |
UC-250WM Spec |
PCB size |
50﹡50~330﹡250 mm |
PCB thickness |
0.5~2.0 mm |
Conveyor height |
900±25 mm |
Adhesive roll |
4 rolls |
Adhesive Paper |
3 rolls |
Conveyor direction |
Left→Right or Right→Left |
Conveyor fix side |
Front side fixed or Rear side fixed |
Width adjustment |
Manual |
Ionizer |
Build-in |
Air supply |
0.5Mpa |
Power supply |
AC220V/100V, 50/60Hz,60W |
Dimension |
L460 x W610 x H1500(mm) |
Weight |
About 120 kg |
