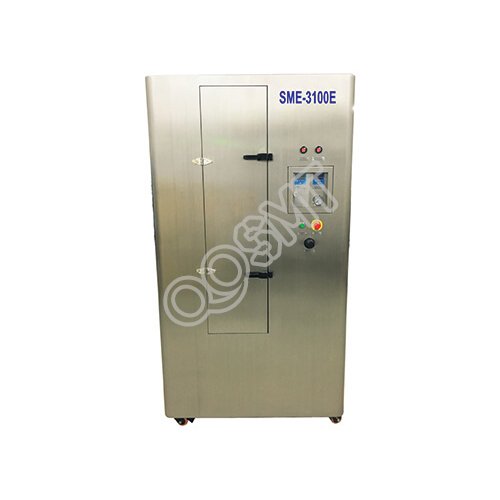

SMT Screen Cleaning Machine SME-3100E
Max Screen Size 1000 x 1000 x 40mm
Solvent tank 50L
Clean time 3~5min
Solvent tank 50L
Clean time 3~5min
Brand Name:
QOSMT
Model:
SME-3100E
Condition:
New
Payment Methods
Machine Description:
SME-3100(SME-3120) Pneumatic Silk Screen Cleaning machine is used to clean printed ink and silver paste on printing screen. The machine is totally driven by compressed air. Rotate spray clean + spray resin + air dry functions can clean any silk screen and stencil. It is mainly used in the following industries:
TP/PCB/FPC/Member switch: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.
Clothing/Sings/Plastic/Hardware Silk Printing Screen.
Machine Features:
1.Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2.Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3.One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4.Clean and rinse system can use different solvent to meet more strict clean requirement.
5.Multi-level precise filtration system, Solvent repeated use in the machine.
6.Standard equipped with auto solvent fill in and drain out function.
7.Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.
8.Cut off 10% printing defect, significantly improve printing quality
9.Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10.Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11.Solvent repeated use, cost down, greatly reduce solvent emission.
Machine Spec:
SME-3100(SME-3120) Pneumatic Silk Screen Cleaning machine is used to clean printed ink and silver paste on printing screen. The machine is totally driven by compressed air. Rotate spray clean + spray resin + air dry functions can clean any silk screen and stencil. It is mainly used in the following industries:
TP/PCB/FPC/Member switch: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.
Clothing/Sings/Plastic/Hardware Silk Printing Screen.
Machine Features:
1.Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.
2.Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.
3.One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure
4.Clean and rinse system can use different solvent to meet more strict clean requirement.
5.Multi-level precise filtration system, Solvent repeated use in the machine.
6.Standard equipped with auto solvent fill in and drain out function.
7.Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.
8.Cut off 10% printing defect, significantly improve printing quality
9.Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.
10.Reduce screen damage rate to less than 1%, extend lifespan of Screen.
11.Solvent repeated use, cost down, greatly reduce solvent emission.
Machine Spec:
| Item | SME-3100 Spec | SME-3120 Spec |
| Max Screen Size | 1000 x 1000 x 40mm( Lx W x H) | 1200 x 1200 x 40mm( Lx W x H) |
| Solvent tank | 50L | 50L |
| Clean time | 3~5min | 3~5min |
| Resin time | 1~2min | 1~2min |
| Dry time | 3~5min | 3~5min |
| Air consumption | 800~1000L/min | 800~1000L/min |
| Air supply | 0.5~0.7Mpa | 0.5~0.7Mpa |
| Air vent size | Φ124 × H30 (mm) | Φ124 × H30 (mm) |
| Filter system | 3-Level filtration system | 3-Level filtration system |
| Clean mode | 360°Rotation Clean +Rinse + Dry | 360°Rotation Clean +Rinse + Dry |
| Machine size | L1380 x W1050 x H 1950(mm) | L1550 x W1100 x H 2050(mm) |
| Machine weight | 400KG | 460KG |
