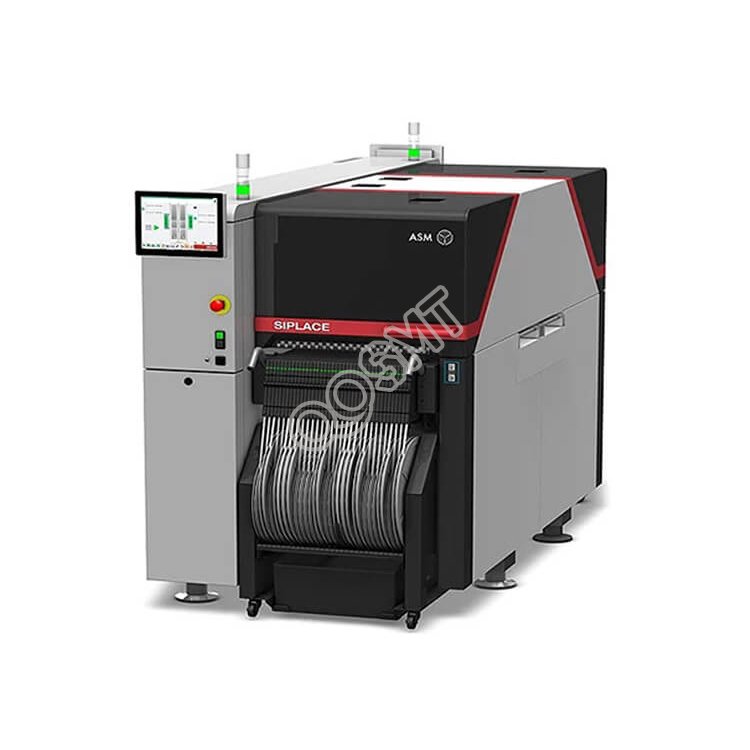

ASM SIPLACE TX Pick and Place Machine
Brand Name:
ASM
Model:
SIPLACE TX
Condition:
New / Used
Payment Methods
Features of ASM SMT Chip Mounter
SMT smart factory SMD line machine with ASM pick and place machine, SIPLACE TX placement, for SMT assembly line.
Specification of ASM SMT Chip Mounter
SMT smart factory SMD line machine with ASM pick and place machine, SIPLACE TX placement, for SMT assembly line.
Specification of ASM SMT Chip Mounter
1. Capacity on Demand: Scale the performance of your SMT lines up or down as needed – quickly and easily
2. The SIPLACE SpeedStar – faster, more precise, and longer-lasting
3. SIPLACE TwinStar: The head for special tasks
4. SIPLACE MultiStar: Switches between placement modes on demand
5. ASM smart transport modules: Process PCBs with lengths of up to 1.525 meters
6. LED centering: Align components based on top-side features
7. Place critical components reliable with the SIPLACE (OSC) Package
8. Touchless placement: Maximum placement quality for highly sensitive components
9. SIPLACE SpeedStar and SIPLACE MultiStar heads can operate jointly in the same placement area for more flexibility and performance.
10. Minimum placement force: 0.5 N
11. SIPLACE Smart Pin Support: Automated pin support for printed circuit boards
12. NEW: ASM Shuttle Extension: Active transport unit for easy management of single and dual conveyors
13. NEW: Up to 17% higher performance| Specifications | SIPLACE TX1 | SIPLACE TX2 | SIPLACE TX2i |
| Placing head | 1 | 2 | 2 |
| IPC Speed | 32,500 cph | 65,000 cph | 67,000 cph |
| Basic Speed | 37,500 cph | 75,500 cph | 78,000 cph |
| Theory Speed | 50,200 cph | 100,500 cph | 103,800 cph |
| L x W x H | 1.0 x 2.3 x 1.45* m | 1.0 x 2.3 x 1.45* m | 1.0 x 2.2 x 1.45* m |
| Chip Range | 0201 (meter) - 6 x 6 mm | 01005 - 50 x 40 mm | 0201 - 55 x 45 mm |
| Accuracy | ± 30μm / 3σ | ±40 μm / 3σ (C&P) | ±22μm/3σ |
| Angle Accuracy | ± 0.5° / 3σ | ± 0.4° / 3σ (C&P) | ± 0.05° / 3σ |
| Component Height | 4 mm | 11.5 mm | 25 mm |
| Placing Pressure | 1.3 - 4.5 N | 1.0 - 10 N | 1.0 - 15 N |
| Conveyor type | Dual Rail conveyor | ||
| Conveyor Model | Asynchronous, synchronous, independent placement | ||
| PCB type | 45 x 45 mm - 375 x 260 mm | ||
| PCB Thickness | 0.3 mm - 4.5 mm | ||
| PCB weight | Max 2.0 kg | ||
| Feeder | 80 pcs 8 mm feeder port | ||
| Feeder type | SIPLACE IT feeder | ||
