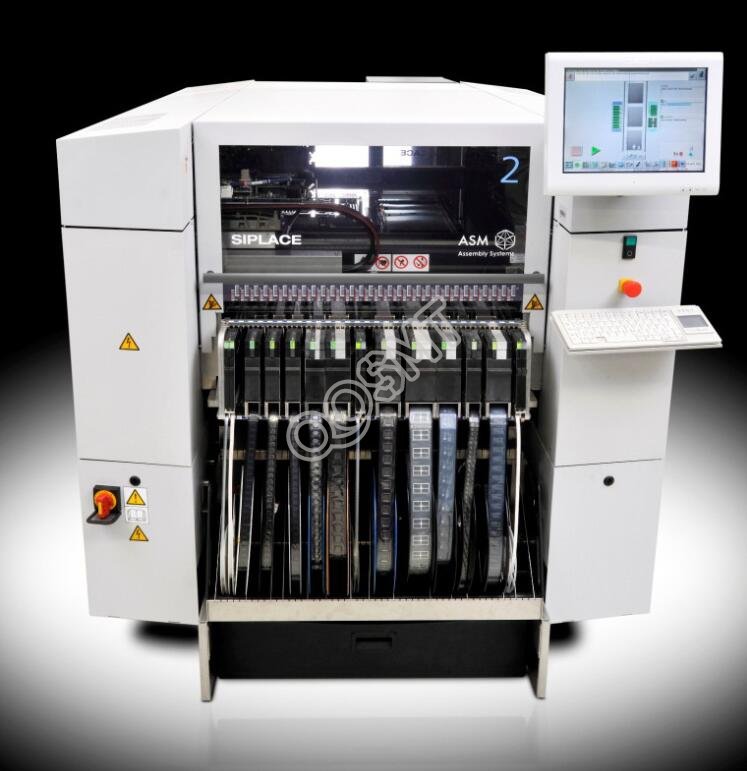

ASM SIPLACE SX2 Pick And Place Machine

Number of arms: 2



IPC speed: 59,000cph



SIPLACE Benchmark Evaluation: 74,000cph



Theoretical Speed: 86,900cph



Machine size: 1.5x2.4m



Placement head features: MultiStar



Component range (mm²): 01005-50x40mm



Mounting accuracy: ±41μm/3σ(C&P)~±34μm/3σ(P&P)



Angle accuracy: ±0.2°/3σ(C&P)~±0.1°/3σ(P&P)



Maximum component height: 11,5mm



Placement force: 1,0-10 Newton



Conveying type: single track, flexible double track



Delivery mode: asynchronous, synchronous, independent placement mode



PCB board size: 50x50mm-maximum 850x560mm



PCB thickness: 0.3-6.5mm



PCB weight: up to 3kg



Feeder capacity: 120 8mmX feeders



ASM Mounter SIPLACE SX2 Product Features:



SIPLACESX series: the preferred placement solution for small batch and multi-variety SMT production



The SIPLACESX series focuses on scalability and flexibility. Customers can quickly import new products, change settings quickly without stopping the line,



Any batch size can be produced, increasing availability and efficiency.



Whether for automotive, automation, medical, telecommunications or for IT infrastructure – the SIPLACESX series meets quality,



All requirements such as process reliability and speed.
