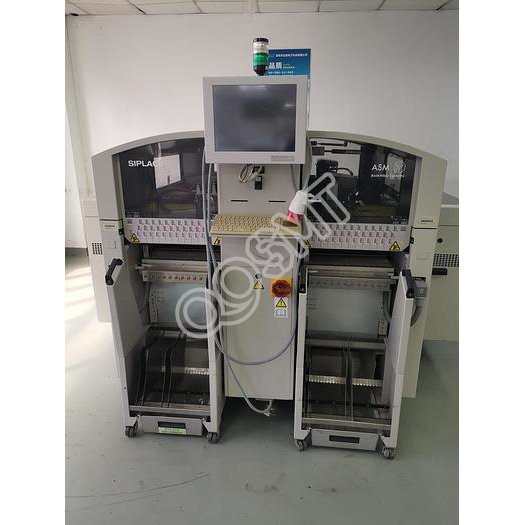

ASM SIPLACE D4 Pick And Place Machine

SIPLACE D4 is a very powerful placement machine equipped with four cantilevers and four 12-nozzle collect and place heads, which can not only achieve 50 micron accuracy, but also can place 01005 components. High performance combined with high precision and outstanding flexibility make SIPLACE

D4 is a high-speed placement machine.



Technical data:

Performance Theoretical value up to 81,500CPH

               IPC value up to 57,000CPH

               Accuracy ±50m, ±0.53ﾟ@3δ

PCB size Single rail transmission 50 x 50 to 610 x 508mm

               Dual rail transmission 50 x 50 to 610 x 380mm

               PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding quantity 144 8mm rails

Component range 01005" - 18.7 x 18.7mm

Quality pickup rate: >/= 99.95%

               DPM Rate: Settings

Power supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) - 10bar (1.0MPa)

Dimensions (L x H x W) up to 2380 x 2491 x 1953mm

Mass 3419kg (basic machine with 4 feeders)

Siemens D4, ASM SIPLACE D4 high-speed placement machine comes from Europe and the United States. European and American equipment has two characteristics of less use time and good maintenance, so that the equipment can be reused for longer life, higher precision and better stability. .
