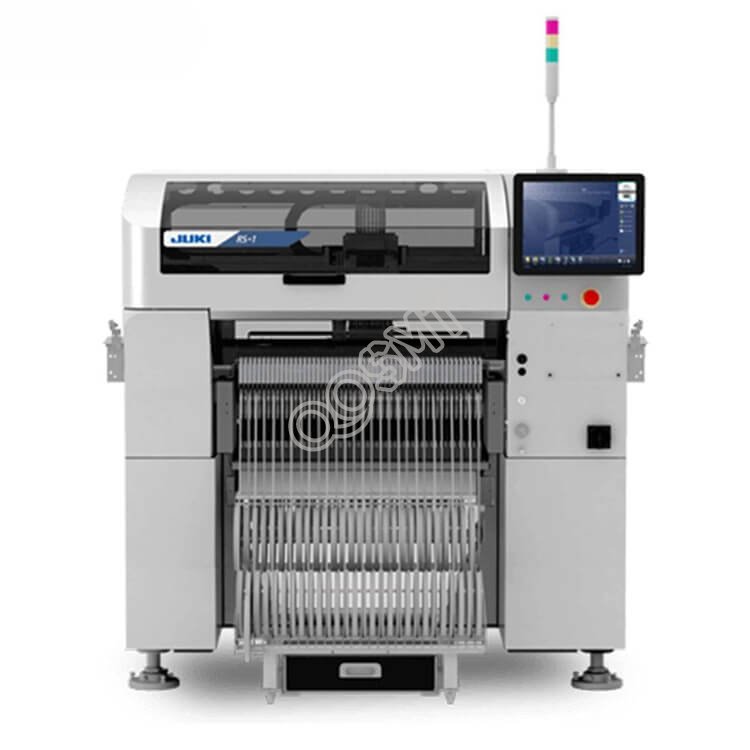

JUKI RS-1 Pick and Place Machine SMT RS-1R Chip Mounter
Placing Speed: 42000CPH
Component Size: 0201 ~ 74 mm / 50 × 150 mm
Feeder Spaces: max. 112
weight: 1.700 kg
Component Size: 0201 ~ 74 mm / 50 × 150 mm
Feeder Spaces: max. 112
weight: 1.700 kg
Brand Name:
JUKI
Model:
RS-1 / RS-1R
Condition:
New / Used
Payment Methods
JUKI Pick And Place Machine RS-1
Revolutionary Head Design
JUKI’s RS-1 includes a groundbreaking new head design that is currently unique in the industry! It includes a fully automated, height-adjustable centring system that allows for the individual adjustment of the head system. This increases throughput to a maximum regardless of the product. The Z travel distance is therefore reduced to the required minimum while user intervention is no longer required.
High Speed
The machine’s top speed of up to 42,000 CPH (optimum) is achieved by a single placement head with eight nozzles, supported by the unique head design that reduces travel time and path for each placement operation.
High Flexibility
The RS-1 supports a broad range of components with sizes between 0201 (metric) to 74 mm (square) or 50 × 150 mm (rectangular). The standard component hight of up to 25 mm punctuates the high flexibility of the machine.
Board Size
max. 650 mm × 370 mm (single clamping)
max. 950 mm × 370 mm (double clamping)
max. 1,200 mm × 370 mm (double clamping)*1
Component Height: 25 mm
Component Size: 0201*2 (metrisch) ~ 74 mm / 50 × 150 mm
Placement Rate: Optimum: 42,000 CPH
IPC9850:29,000 CPH
Placement Accuracy: ± 0.035 mm (Cpk ≥ 1)
feeder Spaces: max. 112*3
Power Supply: 200 – 415 VAC, 3-phase
Apparent Power: 2.2 kVA
Operating Air Pressure: 0,5 ± 0,05 MPa
Air Consumption: max. 50 L / min
Machine Dimensions (W × D × H): 1,500 × 1,810 × 1,440 mm
Mass (approximately): 1.700 kg
*1 250 mm conveyer extension required.
*2 Please contact us for availability.
*3 When using RF Feeder Series on front and rear.
JUKI RS-1R Pick And Place Machine
Revolutionary Head Design
JUKI’s RS-1 includes a groundbreaking new head design that is currently unique in the industry! It includes a fully automated, height-adjustable centring system that allows for the individual adjustment of the head system. This increases throughput to a maximum regardless of the product. The Z travel distance is therefore reduced to the required minimum while user intervention is no longer required.
High Speed
The machine’s top speed of up to 42,000 CPH (optimum) is achieved by a single placement head with eight nozzles, supported by the unique head design that reduces travel time and path for each placement operation.
High Flexibility
The RS-1 supports a broad range of components with sizes between 0201 (metric) to 74 mm (square) or 50 × 150 mm (rectangular). The standard component hight of up to 25 mm punctuates the high flexibility of the machine.
Board Size
max. 650 mm × 370 mm (single clamping)
max. 950 mm × 370 mm (double clamping)
max. 1,200 mm × 370 mm (double clamping)*1
Component Height: 25 mm
Component Size: 0201*2 (metrisch) ~ 74 mm / 50 × 150 mm
Placement Rate: Optimum: 42,000 CPH
IPC9850:29,000 CPH
Placement Accuracy: ± 0.035 mm (Cpk ≥ 1)
feeder Spaces: max. 112*3
Power Supply: 200 – 415 VAC, 3-phase
Apparent Power: 2.2 kVA
Operating Air Pressure: 0,5 ± 0,05 MPa
Air Consumption: max. 50 L / min
Machine Dimensions (W × D × H): 1,500 × 1,810 × 1,440 mm
Mass (approximately): 1.700 kg
*1 250 mm conveyer extension required.
*2 Please contact us for availability.
*3 When using RF Feeder Series on front and rear.
JUKI RS-1R Pick And Place Machine
| Model | RS-1R | ||||
| Conveyor specification | standard |
150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs |
max.112*2 |
||||
