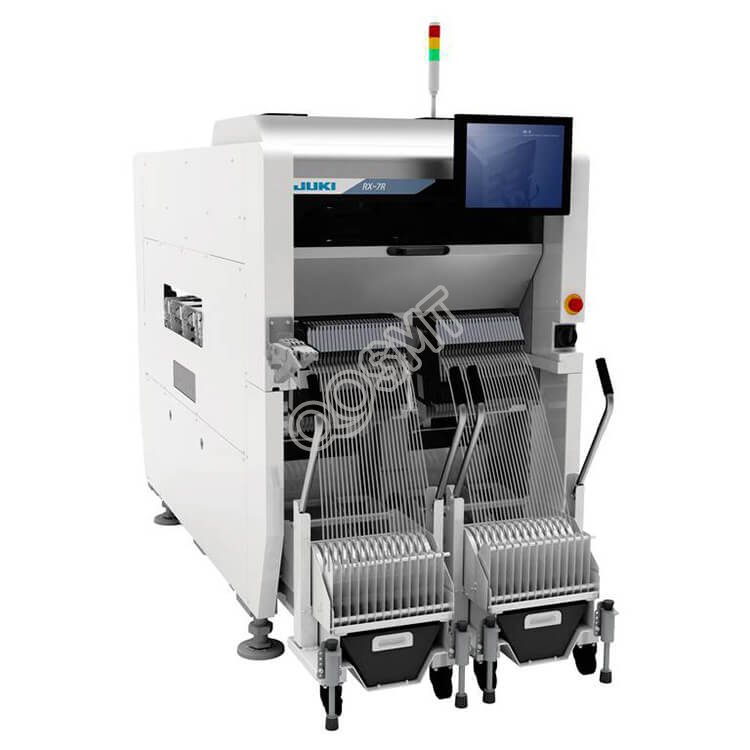

JUKI RX-7 RX-7R Pick and Place Machine
    • JUKI RX-7 RX-7R Pick and Place Machine

    JUKI RX-7 RX-7R Pick and Place Machine


    Max PCB:510mm*1 x 450mm
    Component height 3mm
    Component size 03015*2～5mm x 5mm
    Speed: 75,000CPH
    Brand Name: JUKI
    Model: RX-7 / RX-7R
    Condition: New / Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    High-Speed JUKI Pick and Place Machine RX-7
        P16×P16
    nozzle head    		 P16×P8
    nozzle head    		 P8×P8
    nozzle head
    Board size Single lane conveyer 50×50～510mm*1 x 450mm
      Dual lane conveyer 50×50～510mm*1 x 250mm
    Component height 3mm 3mm
    (P16 nozzle head)    		 10.5mm
        10.5mm
    P8 nozzle head)
    Component size 03015*2～5mm x 5mm 03015*2～
    5mm x 5mm
    (P16 nozzle head)    		 0603～
    25mm x 25mm
        0603～
    25mm x 25mm
    (P8 nozzle head)
    Placement speed (Optimum) chip CHIP 75,000CPH 54,900 CPH 34,800 CPH
      IC - 6,400 CPH*3 12,800 CPH
    Placement accuracy CHIP ±0.04mm(Cpk≧1)
      IC - ±0.04mm
    Component loading quantity 38 (76 in case of 8mm tape) *4
    High-Speed Compact modular mounter RX-7
        P16×P16
    nozzle head    		 P16×P8
    nozzle head    		 P8×P8
    nozzle head
    Board size Single lane conveyer 50×50～510mm*1 x 450mm
      Dual lane conveyer 50×50～510mm*1 x 250mm
    Component height 3mm 3mm
    (P16 nozzle head)    		 10.5mm
        10.5mm
    P8 nozzle head)
    Component size 03015*2～5mm x 5mm 03015*2～
    5mm x 5mm
    (P16 nozzle head)    		 0603～
    25mm x 25mm
        0603～
    25mm x 25mm
    (P8 nozzle head)
    Placement speed (Optimum) chip CHIP 75,000CPH 54,900 CPH 34,800 CPH
      IC - 6,400 CPH*3 12,800 CPH
    Placement accuracy CHIP ±0.04mm(Cpk≧1)
      IC - ±0.04mm
    Component loading quantity 38 (76 in case of 8mm tape) *4


    High -Speed JUKI Chip Mounter RX-7R
      (P16S×P16S head) (P16S×P8 head) (P8×P8 head)
    Board size Single lane conveyer 50×50~510mm×450mm
    Single lane conveyer
    Single lane mode    		 50×50~510mm×450mm
    Single lane conveyer
    Dual lane mode    		 50×50~510mm×250mm
    Component height 3mm 3mm(P16S head) 10.5mm
    10.5mm(P8 head)
    Component size 03015~5mm 03015~5mm(P16S head) 0603~25mm
    0603~25mm(P8 head)
    Placement speed(Optimum) Chip 75,000 CPH 54,900 CPH 34,800 CPH
    IC - 6,400 CPH 12,800 CPH
    Placement accuracy Chip ±0.04mm(Cpk≥1)
    IC - ±0.04mm
    feeder capacity Up to 56
    Power supply 3 phase AC200V,220V-430V
    Apparent power 2.3kVA
    Operating air pressure 0.5±0.05MPa
    Air consumption (standard) 20L/ANR(during normal operation)
    Machine dimensions (W x D x H) 998×1,895×1,530mm 998×1,895×1,530mm
    Mass (approximately) about 1,820kg
