JUKI FX-1 FX-1R Pick and Place Machine SMT Chip Mounter
Applicable Components: 0603
Board size:330×250mm
Feeder inputs:80
placement capacity:33,000CPH
Board size:330×250mm
Feeder inputs:80
placement capacity:33,000CPH
Brand Name:
JUKI
Model:
FX-1 / FX-1R
Condition:
Used
Payment Methods

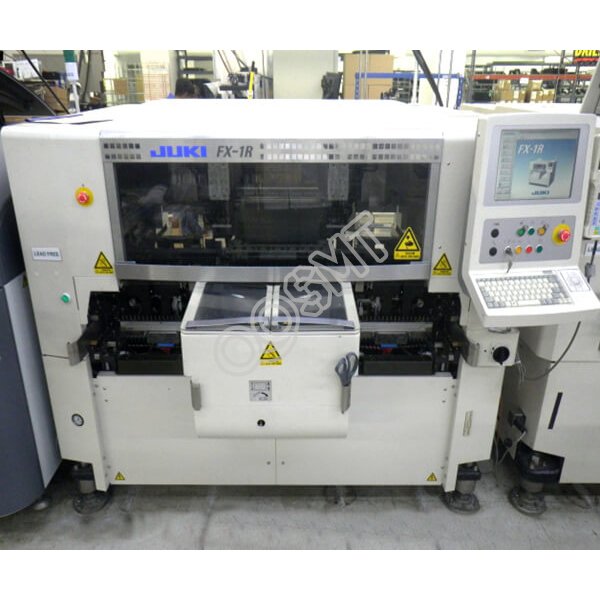

JUKI Pick and Place Machine FX-1R
FX-1R is a traditional modular chip Mounter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
33,000CPH?chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 0201 to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
1 Actual throughput may vary.
2 Please download brochure for details.
*10402 (01005) option factory installed.
*2CPH number of components placed for one hour.
JUKI Chip Mounter fx-1r parameters:
FX-1R is a traditional modular chip Mounter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
33,000CPH?chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 0201 to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
1 Actual throughput may vary.
2 Please download brochure for details.
| Board size | L size (410×360mm) | |
| Component size | Laser recognition | 0603 (0201) 20mm or 26.5×11mm*1 |
| Placement speed | Chip | 33,000CPH*2 optimum condition? |
| 25,000CPH IPC9850 | ||
| Placement accuracy | Laser recognition | ±0.05mm |
| feeder inputs | Max. 80 on 8mm T/F | |
*2CPH number of components placed for one hour.
JUKI Chip Mounter fx-1r parameters:
Board size: 410*360mm
Component height: 6mm
33,000CPH：chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 （0201） to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Component placement speed:chip:33000cph (best condition)
Chip piece: 25000cph (ipc9850)
Component placement accuracy: ±0.05mm
Component placement type: up to 80 types
Power supply: three-phase ac200~415v
Rated power: 3kva
Air pressure: 0.5±0.05mpa
Machine size: 1,880×1,731×1,490mm
Weight: about 2000kg
