JUKI 3010 Pick and Place Machine SMT Chip Mounter
Chip: 23,500CPH chip (Laser centering/Optimum);
18,500CPH (Laser centering / IPC9850)
IC: 9,000CPH (Vision centering/MNVC option)
18,500CPH (Laser centering / IPC9850)
IC: 9,000CPH (Vision centering/MNVC option)
Brand Name:
JUKI
Model:
KE-3010
Condition:
New / Used
Payment Methods

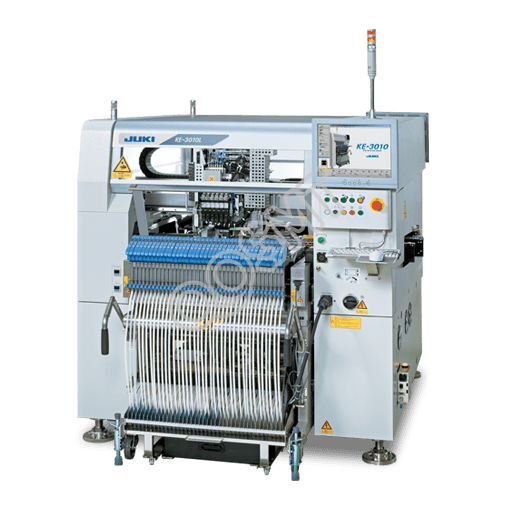

JUKI KE-3010 Pick and Place Machine
❙ Introduce of JUKI Chip Mounter
■ Chip: 23,500CPH chip (Laser centering/Optimum); 18,500CPH (Laser centering / IPC9850)
■ IC: 9,000CPH (Vision centering/MNVC option)
■ From 0402(01005) to 33.5mm square components
■ One multi-nozzle laser head (6 nozzles)
■ The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
■ High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC. (option))
■ Longer sized PWB in X axis(option)
❙ Specification of JUKI Placer
| Board size | M size (330×250 mm) | ○ | |
| L size (410×360 mm) | ○ | ||
| L-Wide size (510×360 mm) *1 | ○ | ||
| XL size (610×560 mm) | ○ | ||
| Applicability to long PWB (M size)*2 | 650×250mm | ||
| Applicability to long PWB (L size)*2 | 800×360mm | ||
| Applicability to long PWB (L-Wide size)*2 | 1,010×360mm | ||
| Applicability to long PWB (XL size)*2 | 1,210×560mm | ||
| Component height | 6mm | ○ | |
| 12mm | ○ | ||
| Component size | Laser recognition | 0402(01005)～□33.5mm | |
| Vision recognition | Standard camera | 3mm*3～□33.5mm | |
| High-resolution camera | 1.0×0.5mm*4～□20mm | ||
| Placement speed | Chip | Optimum | 23,500CPH |
| IPC9850 | 18,500CPH | ||
| IC*5 | 9,000CPH *6 | ||
| Placement accuracy | Laser recognition | ±0.05 mm (±3σ) | |
| Vision recognition | ±0.04 mm | ||
| Feeder inputs |
Max.160 in case of 8mm tape (on a Electric double tape feeder)*7 |
||
*1 L-Wide size is optional
*2 Applicability to long PWB is optional.
*3 When using MNVC. (option)
*4 KE-3010 ： When using both high-resolution camera and MNVC. (option)
*5 Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*6 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010.
*7 When using Electric double tape feeder EF08HD.
