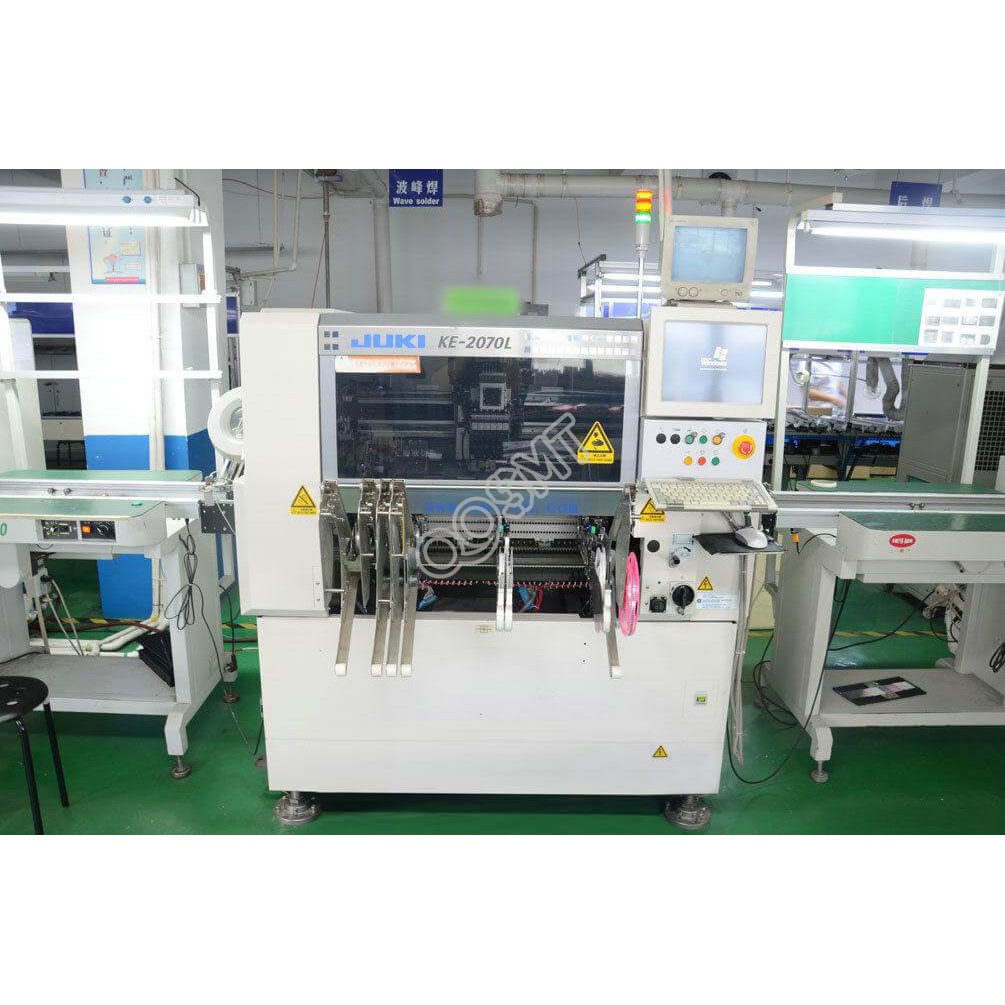

JUKI 2070 Pick and Place Machine SMT KE-2070 Chip Mounter
Applicable Components: 0402 (01005) 33.5mm
Board size:330×250mm
Feeder inputs:80
placement capacity:23,300CPH
Board size:330×250mm
Feeder inputs:80
placement capacity:23,300CPH
Brand Name:
JUKI
Model:
KE-2070
Condition:
Used
Payment Methods
JUKI KE-2070 Pick And Place Machine:
| Board size | M size (330×250mm) |
|
||
| L size (410×360mm) |
|
|||
| L-Wide size(510×360mm) (option) |
|
|||
| E size (510×460mm)*1 |
|
|||
| Component size | Laser recognition | 0402 (01005) 33.5mm | ||
| Vision recognition | Standard camera | 3mm*2 33.5mm | ||
| High-resolution camera (option) | 1.0×0.5mm*3 20mm | |||
| Placement speed | Chip | Optimum | 0.155Sec./chip(23,300CPH) | |
| IPC9850 | 18,300CPH | |||
| IC*4 | 4,600CPH*5 | |||
| Placement accuracy | Laser recognition | ±0.05mm Cpk 1 | ||
| Vision recognition | ±0.04mm | |||
| feeder inputs | Max. 80 on 8mm T/F*6 | |||
