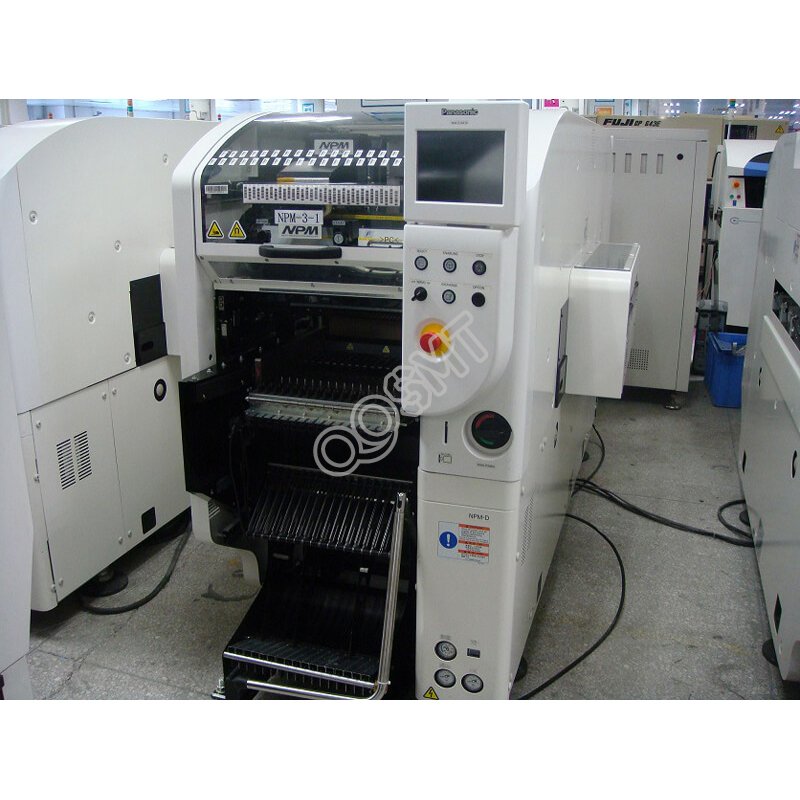

Panasonic NPM-D3 Pick and Place Machine Low Cost Chip Mounter
    • Panasonic NPM-D3 Pick and Place Machine Low Cost Chip Mounter

    Panasonic NPM-D3 Pick and Place Machine Low Cost Chip Mounter


    Mounting Speed: 84,000 cph
    placement accuracy: 25um
    Lightweight 16-nozzle head
    Mini Component: 03015mm
    Brand Name: Panasonic
    Model: NPM-D3
    Condition: New / Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification

    Panasonic Pick And Place Machine NPM-D3 Features

    1. High area productivity with total mounting lines
    Higher productivity and quality with placement and inspection process integration.
    2. Configurable modules allow flexible line setup
    Head location flexibility with plug-and-play functions.
    3.Comprehensive control of lines, floor and factory with system software

    Production plan support through line operation monitoring.



    Panasonic Chip Mounter NPM-D3 Specifications



    Model ID NPM-D3
    Rear head
    Front head    		 Lightweight
    16-nozzle head    		 12-nozzle head 8-nozzle head 2-nozzle head Dispensing head No head
    Lightweight 16-nozzle head NM-EJM6D NM-EJM6D-MD NM-EJM6D
    12-nozzle head
    8-nozzle head
    2-nozzle head
    Dispensing head NM-EJM6D-MD -- NM-EJM6D-D
    Inspection head NM-EJM6D-MA NM-EJM6D-A
    No head NM-EJM6D NM-EJM6D-D --

    PCB dimensions*1

    (mm)

    		 Dual-lane mode L 50 x W50 ~ L 510 x W 300
    Single-lane mode L 50 x W50 ~ L 510 x W 590
    PCB
    exchange
    time    		 Dual-lane mode 0 s* *No 0s when cycle time is 3.6 s or less
    Single-lane mode 3.6 s* *When selecting short conveyors
    Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
    Pneumatic source *2 0.5 MPa, 100 L /min (A.N.R.)
    Dimensions *2 (mm) W 832 x D 2 652 *3 x H 1 444 *4
    Mass 1 680 kg (Only for main body:This differs depending on the option configuration.)
