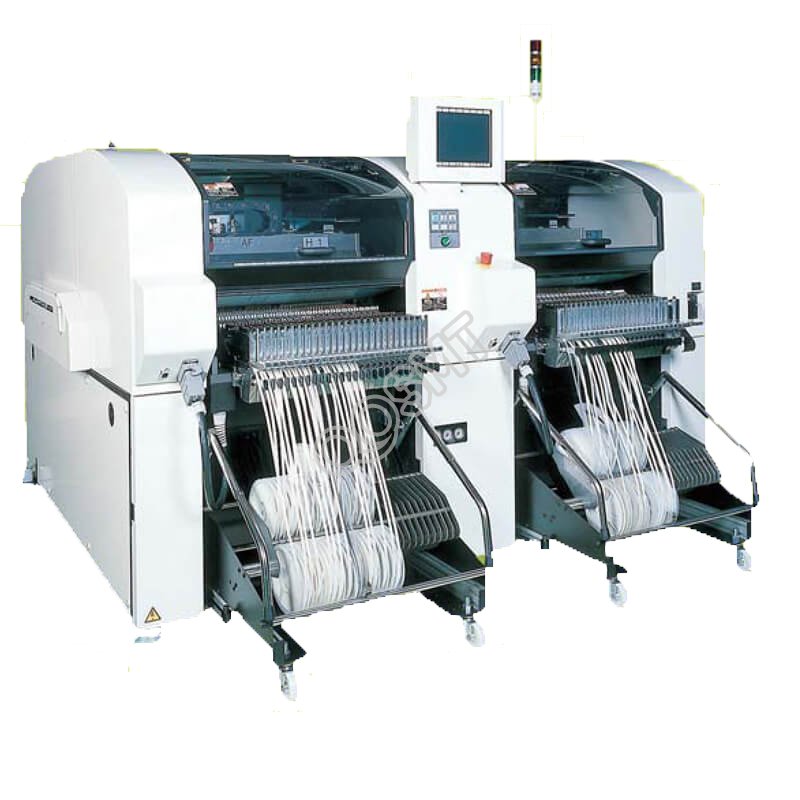

Panasonic CM402 Pick and Place Machine SMT Used Chip Mounter
    • Panasonic CM402 Pick and Place Machine SMT Used Chip Mounter

    Panasonic CM402 Pick and Place Machine SMT Used Chip Mounter


    Mounting Speed: 60,000 CPH
    Application components:0201 to 24mm
    216 feeder inputs
    Brand Name: Panasonic
    Model: CM402-M / CM402-L
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification

    Substrate size: L50mm × W50mm ~ L330mm × W250mm
    Substrate replacement time: 1.8s (when optimal conditions are used)
    Power supply*1: three-phase AC200V, 3.5kVA
    Air pressure source *2: 0.49MPa, 150L/min (A.N.R.)
    Equipment size: W2350mm × D2460mm × H1430mm * 3
    Gross Weight : 2700kg

    High speed head
    Fastest placement speed: 0.06s/chip (Type A)
    Mounting accuracy: ±50μm/chip (Cpk≧1)
    Component size: 0603 chip ~ L24mm × W24mm

    Multi-functional head
    Fastest placement speed: 0.21s/QFP (Type B)
    Mounting accuracy: ±35μm/QFP(Cpk≧1)
    Component size: 0603 chip ~ L100mm × W90mm

    Panasonic Mounter CM402-M Features:
    High production capacity:
    Achieve a high speed of 60,000 CPH (up to 66000 CPH after system upgrade)
    The substrate transport time is as fast as 0.9 seconds. Flexible substrate transport and reduced shipping loss time

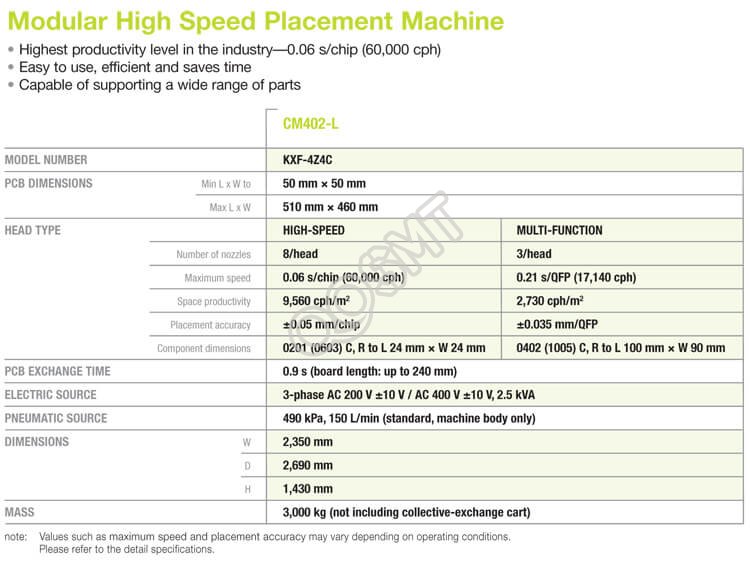

    Panasonic Chip Mounter CM402-L Features:
