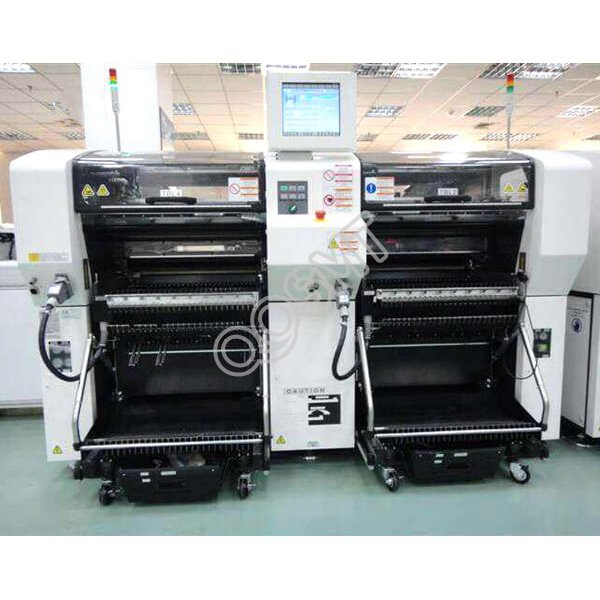

Panasonic CM602 Pick and Place Machine SMT Used Chip Mounter
    • Panasonic CM602 Pick and Place Machine SMT Used Chip Mounter

    Panasonic CM602 Pick and Place Machine SMT Used Chip Mounter


    Mounting Speed: 100,000 CPH
    Application components:0402 (01005)
    High-speed head 12 nozzles
    Mass: 3 400 kg
    Brand Name: Panasonic
    Model: CM602
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification

    Panasonic CM602 SMT Pick And Place Machine

    ❙ Introduce of Panasonic Pick Place Machine

    Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.

    ❙ Features & Benefits

    1.One platform solution for any kind of production
    2. Commonality with existing equipment
    3. Linear motor drive increases reliability and reduces maintenance
    4. Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards

    ❙ Specification of CM602 Chip Mounter
    Product name Panasonic CM602 SMT Pick and Place Machine
    PCB dimensions L 50mm x W50mm to L510mm x  W 460mm
    High-speed head 12 nozzles
    Max. speed 1000000 cph
    Placement accuracy +- 40um/ chip cpk>1
    Component dimensions 0402 chip to L12 x W12 x T6.5
    High-flexibility head LS 8 nozzles
    Max. speed 75000 cph
    Placement accuracy +- 40um/ chip cpk>1
    Component dimensions 0402 chip to L32 x W32 x T8.5
    Multi-function head 3 nozzles
    Max. speed 20000 cph
    Placement accuracy +- 35um/ qfp cpk>1
    Component dimensions 0603 chip to L100 x W90 x T25
    PCB exchange time 0.9 s (board length up: 240mm x under optimum conditions)
    Electric source 3-phase AC 200, 220. 380, 400, 420, 480 V, 4.0 kVA
    Pneumatic source 0.49 kPa, 170 L/min (A.N.R)
    Dimensions (W x D x H) 2,350 mm x 2,290 mm x 1,430 mm
    Mass 3400kg
