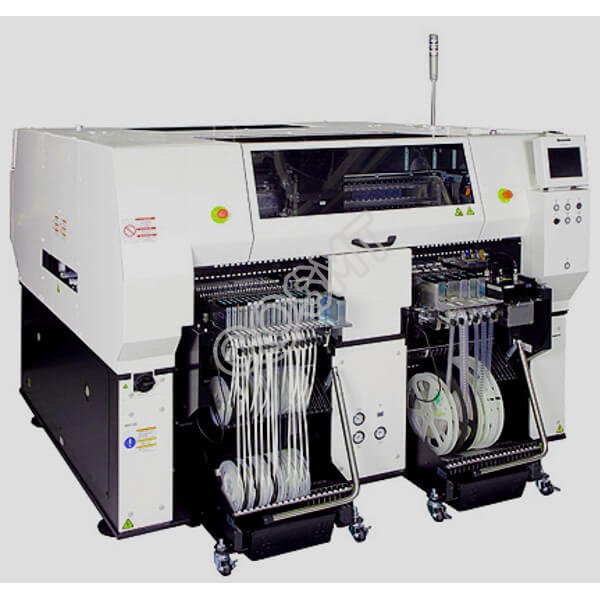

Panasonic AM100 Pick and Place Machine SMT Chip Mounter
Mounting Speed: 22,000 cph
Component Range: 01005 (0402M)
Board Dimensions 510 x 460mm
Weight: 2370 Kg
Component Range: 01005 (0402M)
Board Dimensions 510 x 460mm
Weight: 2370 Kg
Brand Name:
Panasonic
Model:
AM100
Condition:
Used
Payment Methods
❙ Features & Benefits
1.14-nozzle highly versatile head
2. One platform solution for any kind of production
2. Commonality with existing equipment
3. Linear motor drive increases reliability and reduces maintenance
4. Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards
❙ Specification of Panasonic Pick and Place Machine
| Product Name | Panasonic Pick and Place Machine AM100 | |
| Concept | Scalable single gantry hybrid drive platform | |
| Drive system | Highly accurate linear motor hybrid drive | |
| Component alignment | Digital color line scan camera, fixed position | |
| Head design | 14-spindle ultra high flex head | |
| Board dimensions |
510 x 460mm (20 x 18") standard 1,200 x 460mm (47 x 18") optional 1,500 x 460mm (59 x 18") optional |
|
| Board thickness | Up to 8mm | |
| Placement accuracy | ±40 micron Cpk ≥1.0 chip; ±30 micron Cpk ≥1.0 QFP | |
| Throughput | Ideal: 35,800 cph; IPC9850: 22,000 cph | |
| Component range |
Minimum: 01005 (0402M) Maximum: 120 x 90mm (4.7 x 3.5") and 150 x 25mm (6 x 1") Height: Up to 28mm (1.1") Bumps: 0.15mm diameter, 0.5mm pitch |
|
| Feeder capacity |
Reels: Up to 160 reels Tubes: Up to 78 tubes Trays: Up to 40 trays Strip tape: Up to 200 part numbers, optional |
|
| Facilities |
Electric: Three-phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA Pneumatic: Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.) Mass: 2370 Kg (Main body with four feeder banks) Dimensions: W 1,970 x L 2,019 x H 1,500mm |
|
