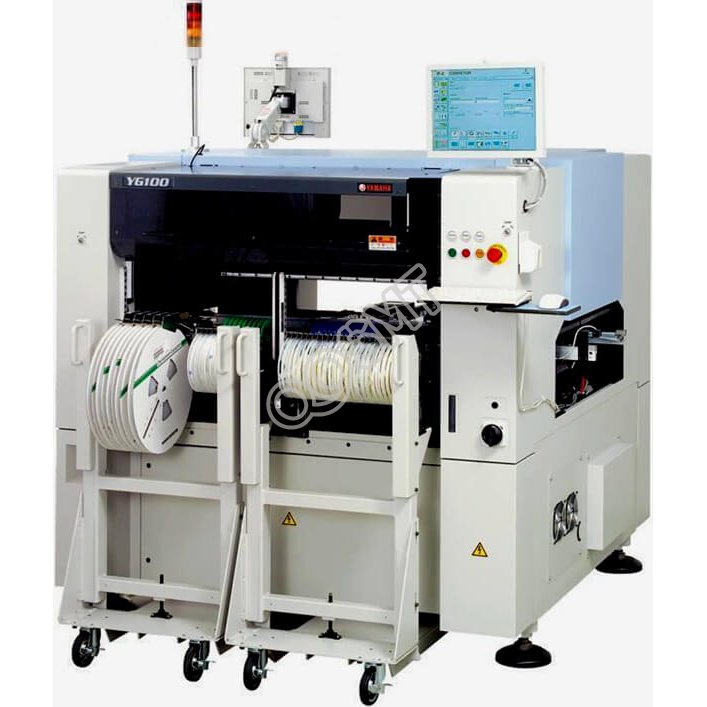

Yamaha YG100 Chip Mounter SMT Pick and Place Machine
    • Yamaha YG100 Chip Mounter SMT Pick and Place Machine

    Yamaha YG100 Chip Mounter SMT Pick and Place Machine


    Patch speed: 24,000 CPH
    Feeder position: 100
    Dimension:1,650(L)x1,562(W)x1,850(H)mm
    Weight: 1,630kg
    Brand Name: YAMAHA
    Model: YG100
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    Yamaha YG100 chip mounter
    • Yamaha YG100 chip mounter
    • 1,650(L)x1,562(W)x1,850(H)mm
    • Patch speed: 24,000 CPH
    • Weight: 1,630kg
    • Product description: Yamaha YG100 chip mounter

    The price range for used placement machine is about USD30000-USD5000Only for reference).

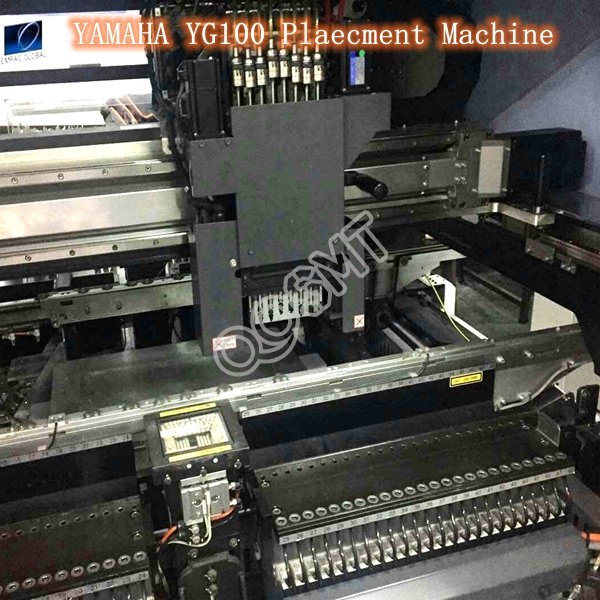

    • YAMAHA YG100 chip mounter is a high-performance, high-precision placement machine produced by YAMAHA specifically for high-speed general purpose machines,it can simultaneously mount different types of special-shaped components.Using YAMAHA's newly designed head structure,all nozzles up and down control are controlled by
    • the electric motor, The machine mounting accuracy is greatly improved compared to the previous memory.
    • YAMAHA YG100 chip mounter high-speed placement chip, high-precision, high-speed modular placement machine,high rigidity dual drive structure,High-performance servo system, high-resolution digital multi-vision camera,multiple precision correction system.
    • Automatically adjust the transmission width, automatically adjust the height of the mounting surface,belonging to the YG series classic models.The theory is 25,000 points per hour.
    • The actual production speed is about 15,000 points per hour.

    YAMAHA YG100 chip mounter's advantages:

    • Mounting range from 01005 (Inch) micro-components to 45mm components.
    • Corresponding to the large substrate size L510xW440mm.96 kinds of large component varieties.Patch speed: 24,000 CPH (0.15 seconds/CHIP)
    • Mounting accuracy: ( 3 ) 0.03mm/CHIP Repeatability (3 ƒ):  0.03mm/CHIP Mounting PCB Size: L50 x W50mm x L510  x W440mm
    • Component Types Belt Packaging: 120 types (converted to 8mm tape)


    2. YAMAHA YG100 chip mounter's parameters:
    • SMD Components: 0402(MM)-45MMX45MM Components SOP SOJ PLCC QFP BGA
    • SMD components can be placed 100 kinds (8MM)
    • Mounter size: L1650XW1562X1470

    Yamaha YG100 chip mounter specification and details as following

    • Board size: M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mmL-Type:
    • L460xW440 ~ L50xW50mm/t = 0.4 ~ 3.0mm * sATS use: L460xW440 ~ L50xW50mm
    • Mounting speed: Chip: 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3)
    • IPC9850 conditions: 17700CPH, Chip: 0.20 seconds / accessories
    • Mounting accuracy: Chip:  0.05mm (3ƒ) / QFP:  0.05mm (3ƒ)5) Mounting angle: (0.01180° units)
    • Supported components: 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA,CSP31mm, 100mm connector, IC socket.
    • Equipment Parts Height: 15mm
    • Part identification methods: multi-angle illumination digital multi-camera system (34 pixels),multi-angle lighting good vision system (79 pixels).
    • Operation Software: YGOS (Full Line Mode, On Line Help, rich accessories and internal organs)
    • Optimization Software: Basic Services (Head and Feeder Numbers,
    • Automatically Specified by the Installer)
    • Remote Control Software: Select (On Line and Off Line Functions Available12) Communication port: (Ethernet has Lan&RS232C)
    • Safety device: Head collision protection device in two modes: Soft Limit and Hard Limit.
    • The Cover Interlock switch is used for head and collision prevention.
    • Power supply: 3-phase AC 416~200V, V 10%, 50/60Hz, 4.8kVA15) Air supply: 5.5kg/ (DryAir)/140/min16) Size and Weight: 1,650(L)x1,562(W)x1,850(H)mm17) Weight: 1,630kg
    • YG100RA (FNC Model)/YG100RB (SF Model) Model: KHW-000 Serise Machine Imagine substrateL50W50mm L510W460mm (Note 1) (Note Mounting efficiency(optimal conditions)24,000CPH/CHIP (equivalent to 0.15 seconds/CHIP)Mounting accuracy(Our standard components)Absolute accuracy (3ƒ): 0.05mm/CHIP, 0.05mm/QFP Repeatability (3ƒ): 0.03mm/CHIP, 0.03mm/QFP Object element

    0402 (mm series name) -  55mm element) SOP/SOJ) QFP) connector) PLCC) CSP/BGA)

    • long connector (Note 3) (Note 4) (Note 5)
    • Target component height is 15mm or less (Note 6)Component type96 (maximum) conversion to 8mm reel) (Note 1)Power Specifications Three-phase AC 200/208/220/240/380/400/416 V 10%50/60 Hz Supply source0.55MPa or more) clean and dryDimensionsL1,650W1,562 (covered end)H1,470 mm (above the cover)

    L1,650W1,615 (whole rail end of replacement trolley)H1,470mm (above cover)

    • YG100RA(FNC type) / YG100RB(SF type)(Model : KHW-000)Applicable PCBL510xW440mm to L50xW50mm(Note 1)(Note 2)Through-put (Optimum)24,000CPH(0.15sec/CHIP Equivalent)Mounting accuracy (Yamaha's standard components)
    • Absolute accuracy (3ƒ):+/-0.05mm /CHIP, +/-0.05mm /QFP
    • Repeatability(3ƒ):+/-0.03mm /CHIP, +/-0.03mm /QFP

    Applicable components

    • 0402(Metric base) to 45mm components, SOP/SOJ, QFP,connector, PLCC, CSP/BGA,
    • Long connector (Note 3)(Note 4)(Note 5)
    • Height of components which can be mounted : 15mm or less(Note 6)Number of component types96types(Max,8mm tape reel conversion)(Note 1)Power supply3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60HzAir supply source0.55MPa or more, in clean, dry states External dimension(Note 7)
    • L1,650xW1,562(End of cover)xH1,470mm(cover top)L1,650xW1,
    • 615(End of guide for feeder carriage)xH1,470mm(cover top)
    • Weight Approx. 1,630kg(Main unit only)
