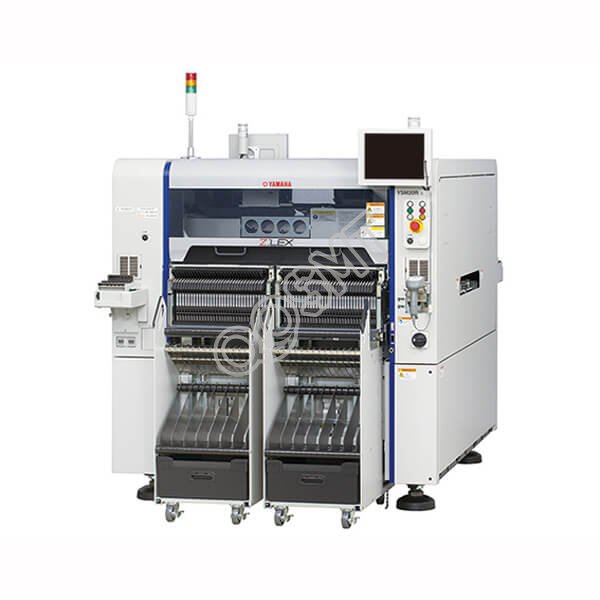

Yamaha YSM20 Chip Mounter SMT YSM20R YSM20W Pick And Place Machine
    • Yamaha YSM20 Chip Mounter SMT YSM20R YSM20W Pick And Place Machine

    Yamaha YSM20 Chip Mounter SMT YSM20R YSM20W Pick And Place Machine


    Speed: 80,000 CPH
    Applicable Components: 0201 to 45×45 mm
    Size:L 1,374 x W 2,110 x H1,445mm
    Weight:2500KG
    Brand Name: YAMAHA
    Model: YSM20R YSM20W
    Condition: New / Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    Feature
    Caters effectively to a wide range of production processes ? it is also the world’s fastest in its class*
    The “1 head solution” aims to deliver an ideal mounter that provides both high speed and versatility!
    Wide support capability turns the concept of “Limitless EXpansion” into a reality!
    Numerous functions to support high-quality mounting are included as standard features.
    Feeders and supply devices offering a high degree of freedom
    *Components mounting speed (CPH) for a surface mounter with the 2-beam, 2-head layout. Based on Yamaha survey as at May 2014.

    Yamaha YSM20R Yamaha YSM20W
    Applicable PCB Dual stage (only for X axis 2-beam specs.)
    1 PCB conveyance : L810 x W490 to L50 x W50
    2 PCB conveyance : L380 x W490 to L50 x W50
    Single lane
    L810 x W490 to L50 x W50
    Dual lane (only for X axis 2-beam specs.)
    L810 x W230 to L50 x W50    		 Single lane
    L810 x W742 to L50 x W80
    Dual lane (only for X axis 2-beam specs.)
    L810 x W356 to L50 x W50
    Mounting capability X axis 2-beam : High-speed multi-purpose
    (HM: High-speed Multi) head x 2
    90,000CPH (under optimum conditions as defined by Yamaha Motor)    		 X axis 2-beam : High-speed multi-purpose
    (HM: High-speed Multi) head x 2
    80,000CPH (under optimum conditions as defined by Yamaha Motor)
    Mounting accuracy +/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ)
    Applicable components High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less
    Note : Multi-camera (option) may be needed in some cases due to part height and part size.
    Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less
    Number of component types Fixed plate : Max.140 types (conversion for 8mm tape feeder)
    Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder)
    Trays for 30 types (fixed) and 10 types (carriage)
    Power supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
    Air supply source 0.45MPa or more, in clean, dry state
    External dimension (excluding projections) L 1,374 x W 1,857 x H1,445mm L 1,374 x W 2,110 x H1,445mm
    Weight Approx. 2,050 kg Approx. 2,500 kg
