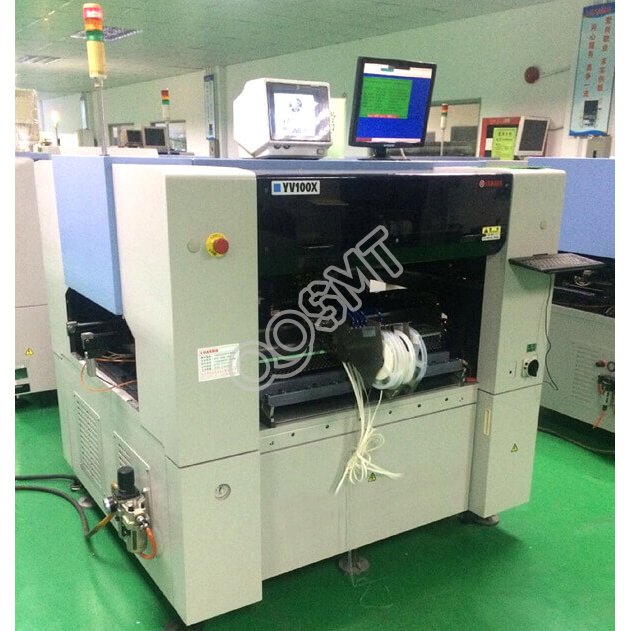

YAMAHA YV100X SMT Mouter Cheapest Pick and Place Machine
    • YAMAHA YV100X SMT Mouter Cheapest Pick and Place Machine

    YAMAHA YV100X SMT Mouter Cheapest Pick and Place Machine


    speed 18000CPH
    PCB size: L460 x W445mm
    weight：1,450kg
    Dimension: L1,655XW1,408XH1,850mm
    Brand Name: YAMAHA
    Model: YV100X
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    Specifications:
    • Model: Yamaha YV100-X (Vintage: 2002-2006)
    • MC Type: YV100X
    • PCB size: L460 x W445 mm (Max.), L50 x W50 mm (Min.)or L460 x W335 mm
    • Accuracy: +-0.1 mm(Chips), +-0.08 mm(QFP)
    • Mounting Speed: 0.198 sec/chips, 1.7 sec/QFP
    • Mounting angle: +-180°, per0.01°
    • Space for cassettes: 100 of 8mmTape, and 80 trays with YTF. (Option)
    • Available feeders: 8-56 mmTapes, Sticks, Bulks, Trays
    • Available Components: From 0.6mmX0.3mm to 32 mmX100 mm, Maximum component height 6.5 mm
    • Maximum mounting data: 10000 mounting line/ 1 production data, Maximum 500 production data in the hard disk.
    • Machine size: L1, 655XW1, 408XH1, 850 mm
    • Power Supply: 3-Phase AC 200/208/220/240/380/400/416 V +1-10% 50/60 Hz
    • Air supply: source 0.55 MPa or more,(4 to 6 Bar) in clean, dry states
    • Machine weight: 1,450 kg
