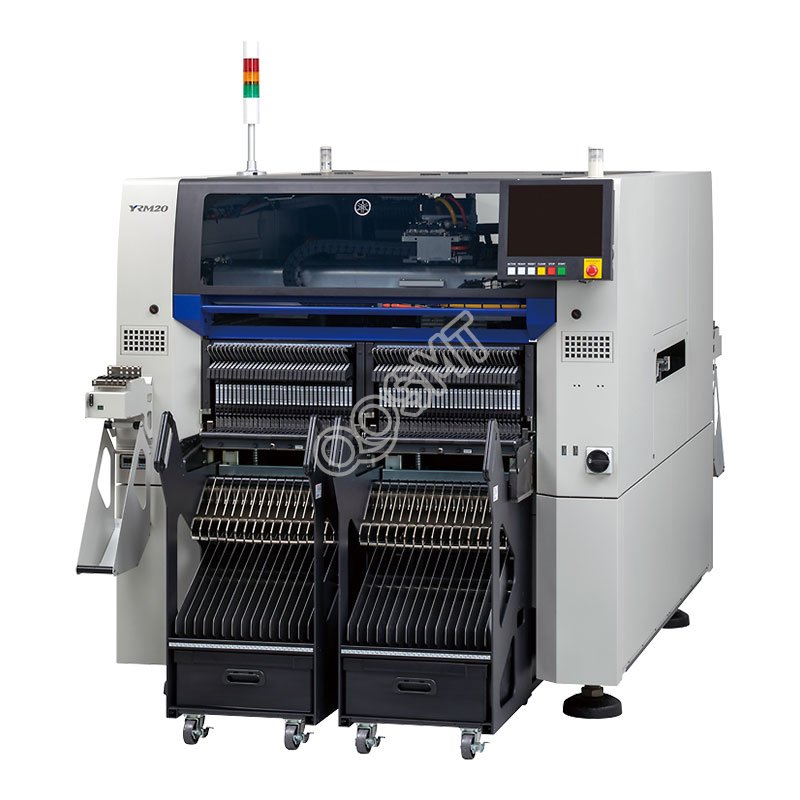

Yamaha Chip Mounter YRM20 Yamaha SMT Pick and Place Machines
115,000CPH
0201 to W12 x L12mm, Height 6.5mm or less
Approx. 2,250kg
0201 to W12 x L12mm, Height 6.5mm or less
Approx. 2,250kg
Brand Name:
YAMAHA
Model:
YRM20
Condition:
New / Used
Payment Methods
❙ Features of Yamaha Chip Mounter YRM20
High quality Yamaha pick and place machine, Yamaha placement, Yamaha chip mounter, for SMT smart factory.
1. Fusion with Σ technology achieves overwhelming productivity
2. Broad-ranging production capacity thanks to the 1-head solution
3. Standard features that maintain component mounting quality at a peak level!
4. Ensures high-efficiency production with a full range of functions!
❙ Specification of Yamaha SMT pick and place machine YRM20
| Model | YRM20 | |
|---|---|---|
| High-speed general-purpose rotary RM head | IN-LINE HM head | |
| Nozzles (per 1 head unit) | 18 | 10 |
| Applicable components | 0201 to W12 x L12mm, Height 6.5mm or less | 0201 to W55 x L100mm, Height 15mm or less |
|
Mounting capability (during high-production mode) |
115,000CPH | 98,000CPH |
|
Mounting accuracy (during high-precision mode) |
During use under in-house optimal conditions : ±0.025mm Cpk≧1.0 | |
| Number of component Types | Feeder carriage exchange : Max. 128 types = 32 feeders x 4 (conversion for 8mm tape feeder) | |
| PCB dimensions |
Dual-stage specifications 1PCB conveyance : L810 x W510mm to L50 x W50mm 2PCB conveyance : L380 x W510mm to L50 x W50mm |
|
| Power supply | 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz | |
| Air supply source | 0.45MPa or more, in clean, dry state | |
|
External dimension (excluding projections) |
L1374 x W1948 x H1445mm | |
| Weight | Approx. 2,250kg (Main unit only) | |
