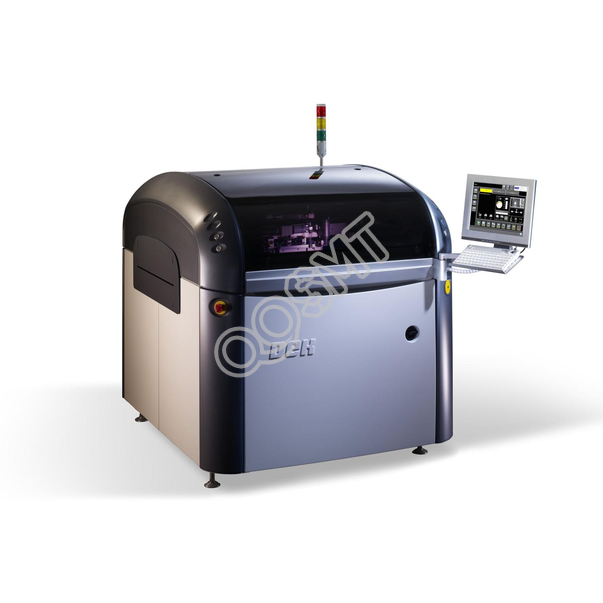

DEK Horizon 03iX Automatic Stencil Printer
Brand Name:
DEK
Model:
Horizon 03iX
Condition:
Used
Payment Methods
|
Standard Configuration |
Specification | |
|
Machine Alignment Capability |
>2 Cpk @ +/- 12.5µm, 6 Sigma # | |
|
Process Alignment Capability |
>2 Cpk @ +/- 25µm, 6 Sigma # | |
|
Core Cycle Time |
12 secs (11 secs with HTC option) | |
|
Maximum Print Area |
510mm* (X) x 508.5mm (Y) | |
|
Printer Construction |
One piece optimised welded frame | |
|
ISCANTM Machine Control |
Motion control using CAN BUS network | |
|
Operating System |
Windows XP | |
|
Operator Interface |
Colour TFT touch screen display, keyboard and trackball with DEK InstinctivTMsoftware. Machine mountable on either left or right hand side. | |
|
Camera |
HawkEye® 750 digital camera, using IEEE 1394 interface. Multi channel. LEDlighting. FOV 11.3mm x 8.7mm. Inspection window 26mm2 | |
|
Camera Positioning |
Rotary motors and encoders with 4 micron resolution | |
|
Squeegee Pressure Mechanism |
Software controlled, motorised | |
|
Stencil Positioning |
Manual width screen depth adjuster | |
|
Stencil Alignment |
Motorised via actuators X, Y, and Theta | |
|
Squeegee |
Clamped double trailing edge squeegee (1 set included) | |
|
Machine Interface |
Upline and downline FMI included | |
|
Connectivity |
RJ-45LAN (networking) and USB2 interface available | |
|
Tri Colour Beacon |
Programmable with audible alarm | |
|
Documentation |
Hard copy manuals comprising: Operator, Installation, Electrical Drawings. On board technical manuals and tutorials supporting operator functions. DVDcontaining manuals and tutorials. |
