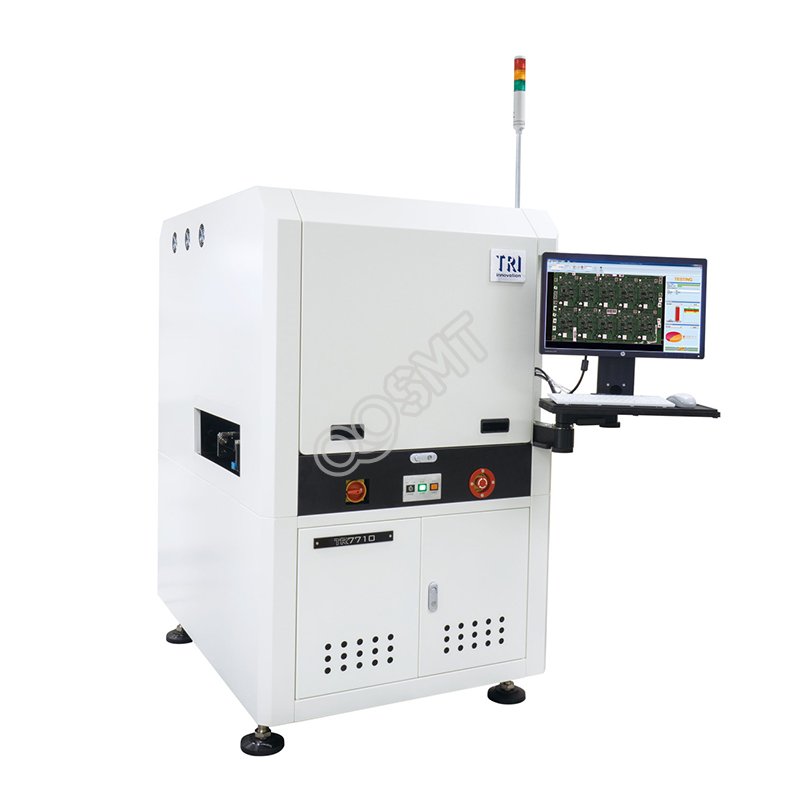

TRI AOI TR7710 Automated Optical Inspection
    • TRI AOI TR7710 Automated Optical Inspection

    TRI AOI TR7710 Automated Optical Inspection


    Brand Name: TRI
    Model: TR7710
    Condition: Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification
    The economical customizable TR7710 combines a precise high resolution camera system and TRI&'s exclusive multi-phase lighting to capture detailed PCB panel images. New optical solution offers increased DOF range for tall components with optional high clearance. TRI Series III AOI-compatible inspection software combines excellent defect detection and easy smart CAD-based programming into a cost effective, customizable AOI solution designed to fit any budget.


    Optical System

    Imaging Method Stop-and-Go
    Top Camera 6.5 Mpix
    Angle Camera N/A
    Imaging Resolution 10 µm, 12.5 µm (factory setting)
    Lighting Multi-phase RGB+W LED
    3D Technology N/A
    Max. 3D Range N/A

    Inspection Performance

    Imaging Speed 6.5 Mpix@ 10 µm: 27 cm²/sec
    6.5 Mpix@ 12.5 µm: 42 cm²/sec

    Motion Table & Control

    X-Axis Control Ballscrew + AC-servo controller
    Y-Axis Control Ballscrew + AC-servo controller
    Z-Axis Control N/A
    X-Y Axis Resolution 1 µm

    Board Handling

    Max PCB Size TR7710@ 10 µm, 15 µm: 510 x 460 mm
    TR7710 DL@ 10 µm, 12.5 µm: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
    PCB Thickness 0.6-5 mm
    Max PCB Weight 3 kg
    Top Clearance 25 mm
    Bottom Clearance 40 mm [100 mm optional]
    Edge Clearance 3 mm [5 mm optional]
    Conveyor Inline
    Height: 880 – 920 mm

    * SMEMA Compatible

    Inspection Functions

    Component Missing
    Tombstoning
    Billboarding
    Polarity
    Rotation
    Shift
    Wrong Marking (OCV)
    Defective
    Upside Down
    Extra Component
    Foreign Material
    Solder Excess Solder
    Insufficient Solder
    Bridging
    Through-hole Pins
    Lifted Lead
    Golden Finger
    Scratch/Contamination

    Dimensions

    WxDxH TR7710: 1000 x 1400 x 1650 mm
    TR7710 DL: 1000 x 1500 x 1650 mm

    Note: not including signal tower, signal tower height 520 mm
    Weight TR7710: 600 kg
    TR7710 DL: 650 kg
