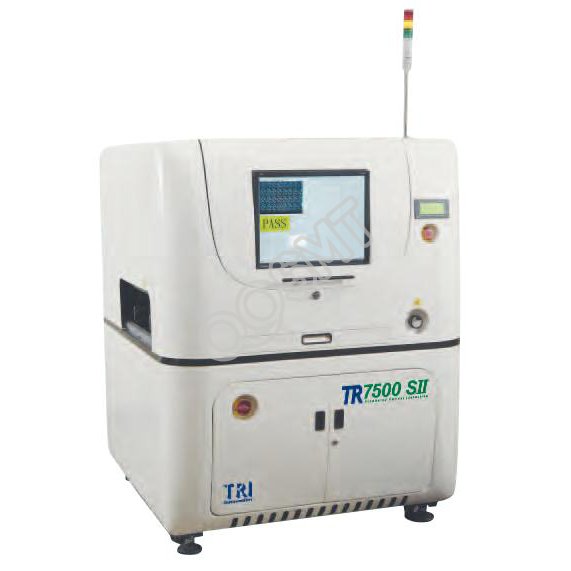

TRI AOI Used TR7500 SII Automated Optical Inspection
Brand Name:
TRI
Model:
TR7500 SII
Condition:
Used
Payment Methods
Optical imaging system
Top view camera 1 3CCD color camera
Side view camera 4 black and white cameras
Lighting source: multi-zone, multi-angle LED, red, green, blue + white LED light source
Resolution 10, 12 or 15μm (factory setting)
Image acquisition method: high-speed dynamic image acquisition
Image/detection speed
15μm 93cm2/sec
12μm 69 cm2/sec
10μm 44cm2/sec
Pre-furnace / post-furnace inspection items
Component defects include missing parts, tombstones, side-standing, reverse poles, offsets, wrong parts, inversions, etc.
Solder joint defects include more tin, less tin, bridging, contamination, empty soldering, warped feet, etc.
X - Y platform control
High-precision ball screw drive (with servo motor and DSP motion controller)
X, Y analysis accuracy 1μm
PCB board and machine
Maximum testable PCB size TR7500 SII 510 x 460mm
TR7500L SII 660 x 610mm
Maximum PCB thickness 4mm
Transport/fixing of the board to be tested, automatic entry and exit/fixture fixation
Part height limit
Upper end 50mm
Bottom 50mm
Side 3.5mm
Weight TR7500 SII 850kg TR7500L SII 985kg
Dimensions
TR7500 SII (W) 1220mm x (D) 1480mm x (H) 1575mm
*Excluding the height of the three-color lamp, the height of the three-color lamp: 510mm
TR7500L SII (W) 1370mm x (D) 1570mm x (H) 1601mm
*Excluding the height of the three-color lamp, the height of the three-color lamp: 510mm
Power supply 200-240V single phase, 50/60Hz 3KVA
Optional requirements OCR, OCV, coaxial lighting, barcode reader, offline programming system, maintenance workstation & SPC system, YMS system
Automatic alarm system: three-color lights and buzzer for alarm
