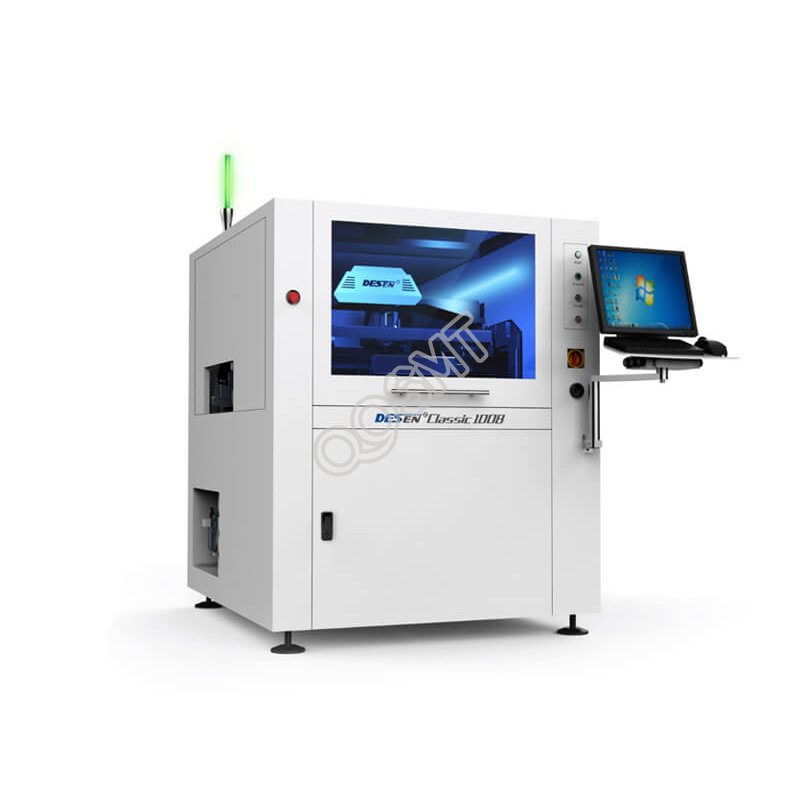

Desen Automatic Classic 1008 Solder Paste Printer Machine PCB Screen Printer
Screen frame dimension 470*370mm-737*737mm
printing size Max400*340mm
size: 1140mm(L)*1360mm(W)*1505mm(H)
printing size Max400*340mm
size: 1140mm(L)*1360mm(W)*1505mm(H)
Brand Name:
Desen
Model:
Classic 1008
Condition:
New / Used
Payment Methods
Desen Automatic visible screen printer Classic 1008
●Classic reproduced, cost-effective model of first choice
Product features：
▲Automatic visual alignment system；
▲Multi-functional image processing system；
▲Unique scraper self-adaptive system；
▲Dripping automatic cleaning system；
▲Smart transmission system；
▲Early warning for maintenance；
▲Printing parameter intelligent module；
▲User-friendly operation interface；

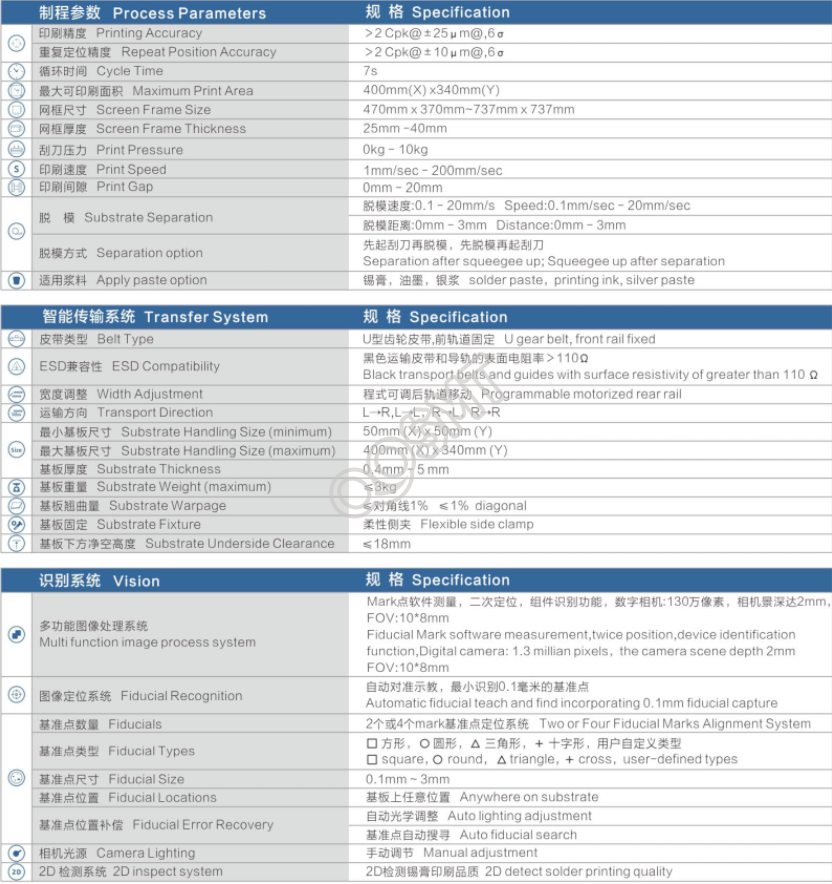

| precision | Printing precision | ≥2 Cpk@±25μm@,6σ |
| Repeat printing | ≥2 Cpk@±10μm@,6σ | |
| Cycling time | 7s | |
| Screen frame | Screen frame dimension | 470*370mm-737*737mm |
| Screen frame fixation | air cylinder | |
| Screen frame adjustment | automatic | |
| Platform | platform adjustment range | X:±4mm Y:±6mm |
| Platform adjustment angle | Z:±2° | |
| PCB | printing size | standard: Min50*50mm Max400*340mm(optional:460*340mm) |
| PCB thickness | 0.4mm-5mm | |
| PCB weight | ≤3kg | |
| PCB warping | maximum warping 7mm (including base plate ) | |
| Transmission | Transmission direction | L→R,L→L，R→L，R→R |
| Transmission speed | 100-1500mm/s programmable adjustment | |
| Transmission width | 50-340mm | |
| Demould | Demould method | First use scraper, then demould, demould then use scraper, maintain pre-pressure for demould (surface demould, line demould) |
| Demould speed | 0.1-20mm/s | |
| Speed distance | 0mm-3mm | |
| Work condition | voltage | 220V, ±10%, single phase 50/60Hz |
| Power | 3kw | |
| Air pressure | 0.45-0.6MPa | |
| Gas consumption | 0.5ml/s | |
| Safety performance | insulation resistance | 1KV/3MΩ |
| Ground resistance | ≤0.1Ω | |
| Operation noise | ≤87dB | |
| External dimension | 1140mm(L)*1360mm(W)*1505mm(H) | |
