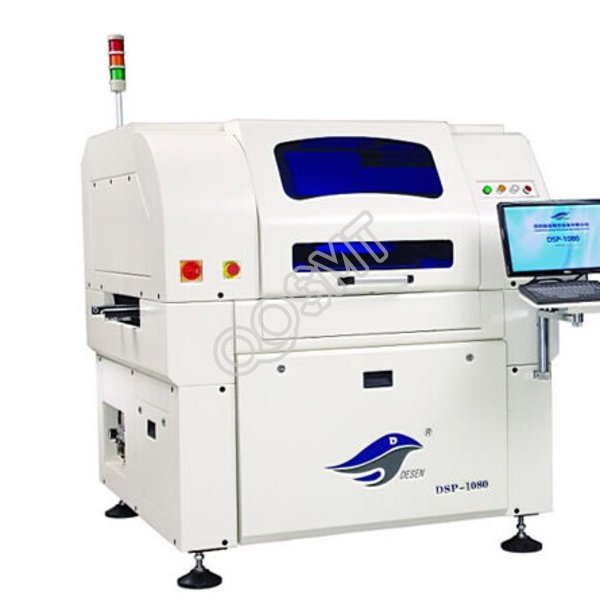

Desen Automatic DSP-1008 Solder Paste Printer Machine PCB Screen Printer

The Desen DSP 1008 High Precision Fully Automatic Screen Printer operates a direct drive system which is composed of two independent print heads. Each of them is driven directly by a high precision stepping motor. The Desen DSP 1008 High Precision Fully Automatic Screen Printer has an automatic stencil cleaning system which can be programmed for a variety dry, wet and vacuum cycle to clean the underside of the stencil. The PCB transportation and clamping systems are also driven by stepping motors. The stepping motor on the Desen DSP 1008 High Precision Fully Automatic Screen Printer is smarter than an A/C motor as it separates the transport process in to two stages. Desen use a strong vacuum chamber to support the PCB and this allows the user to print thinner PCB’s. An advanced precise optics vision system with upper/lower vision improves PCB and stencil position. It uses an Omni direction lamp-house that ensures optics vision accuracy. Desen DSP 1008 High Precision Fully Automatic Screen Printer operation system is based on Windows XP interface. Both programming and operator interface are using graphic user interface (GUI) for simple operation.  The Desen DSP 1008 offers the bst pound for pound performance in the stencil printing market and this is reflected by the extraordinary amount of printers sold world wide.  Please contact us to discuss all the purchase / rental schemes we have available, a new Desen DSP 1008 high precision fully automatic screen printer could be far more affordable than you think.



Features

Direct type print heads driven by elevator motor

Precise PCB transport system

Automatic stencil cleaning system

Safe distribution of electric control

Fully automatic set-up

User friendly operation interface

CE Marked


Technical Parameters

Print Accuracy  – Accuracy ±0.025mm

Repeating Accuracy  – ±0.01mm

Cycle Time –  ＜8S

Stencil Size –  470*380-737*737mm

Stencil Clamping – Air Valve

Stencil Positioning – Automatic

Platform Calibration Limit – X:±4mm Y:±6mm

Platform Direction Limit  – ±2º

PCB Printing Size – 50*50-400*340mm

PCB Thickness – 0.4-5mm

Transport – L-R, R-L, L-L, R-R

Transport Speed – Stepping Motor，100-1500mm/s Programmable

PCB Weight 0-3kg

Transport Hight – 900±40mm

Transport Width – 50-340mm

SMEMA Interface – Standard

PCB Separation – 3 Stages Programmable Separation

Paste Inspection – 2D Inspection (Optional)

Power Input  – AC:220±10％,50/60HZ-1￠

Power Consumption – 3KW

Air Pressure – 4.5~6Kg/cm2

Machine Size – 1140*1360*1560mm
