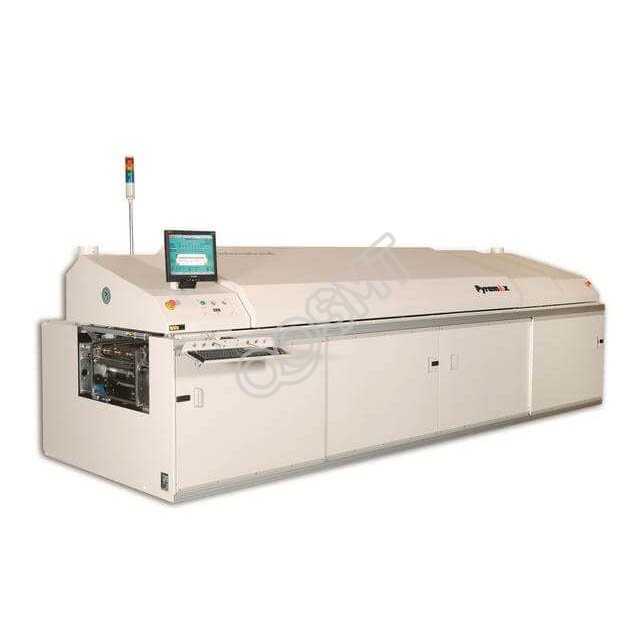

BTU Pyramax Convection Reflow Oven
6, 8, 10 and new 12-zone air or nitrogen models
Brand Name:
BTU
Model:
Pyramax Convection
Condition:
Used
Payment Methods
BTU Pyrama family™ of high-throughput thermal processing systems is widely recognized as the global standard of excellence for both printed circuit board solder reflow and for semiconductor packaging.
Pyramax™ systems provide optimized lead-free processing for the ultimate in productivity and efficiency. BTU’s exclusive closed loop convection control provides precise heating and cooling, programmable heat transfer, and reduced nitrogen consumption, adding up to the lowest Cost of Ownership in the industry.
With 6, 8, 10 and new 12-zone air or nitrogen models, 350oC maximum temperature and a comprehensive menu of options, Pyramax™ systems are the industry’s most versatile performers and best value.
Closed Loop Convection
BTU’s exclusive Closed Loop Convection Control provides maximum flexibility in process control.
Side-to-side recirculation enhances temperature uniformity
Guaranteed process repeatability, system to system, site to site
Unmatched convection efficiency reduces zone temperature setpoints.
Flux Management System
BTU’s patented Flux Management System traps flux residue from the process chamber, preventing it from settling within the oven, leading to increased uptime and lower cost-of-ownership.
Easy access to filtration and trap arrangement
Multiple extraction locations maximize overall efficiency
“On the fly”maintenance eliminates downtime
Innovative Cooling System
BTU’s unique clamshell air or water-cooling design moves the cooling media away from the process chamber, where it can be easily accessed for maintenance.
Water cooling features a sliding heat exchanger assembly allowing easy access for maintenance
Closed loop cooling control provides variable cooling rates and increased process control
Lead Free Process-Guaranteed
BTU’s repeatable process control eases the transition to lead-free.
Stainless steel construction
350°C Maximum temperature
Closed loop convection control
Superior cooling performance
Standard Features
Lead Free Process-Guaranteed
350ºC Maximum Temperature
Forced Impingement Convection
Programmable Heating and Cooling Rates
Side to Side Gas Recirculation
Low Nitrogen and Power Consumption
Flexible Platform Configuration
Automatic Width Adjust
Dynamic Gas Idle
Smart Product Tracking (SMEMA)
WINCON Control Software
Electronic Over-Temperature Safety System
Options
24 in Processing Capability
400ºC Maximum Temperature
Belt and Rail Conveyors
Fine Mesh Conveyor Belts
Multiple Track Solution
Flux Management
Closed Loop Convection Control
Integrated Water Supply
Low Nitrogen Consumption Package
High Power Heaters
Center Supports
Automatic Gas Sampling
UL 508A and CE Compliant
Automated Wafer Handling
Barcode Reader
Customer Support
BTU’s quality products are backed by its Industry leading comprehensive warranty.
Lifetime on heaters and blowers
3 years system
1 year labor
To enhance uptime the Pyramax is supported by BTU’s 24-hour, 7-DayWorldwide customer support, electronic user documentation, and Parts Identification Software which allows customers to identify parts without the use of a cumbersome paper manual.
