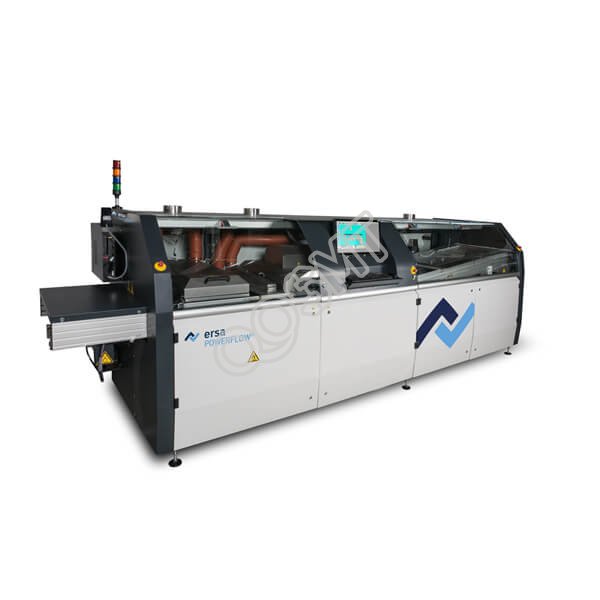

ERSA POWERFLOW SMT Wave Soldeing Machine
PCB width : 508 mm
Solder volume: 820 kg
Solder temperature: max. 300 °C
Solder volume: 820 kg
Solder temperature: max. 300 °C
Brand Name:
ERSA
Model:
POWERFLOW
Condition:
New / Used
Payment Methods
Dimensions
Length from 4,200 to 4,950 mm
Width 1,510 mm
Height 1,565 mm
Weight: 2,200 bis 3,000 kg
Conveyor systems
Finger conveyor
Maximum conveyor speed 2.5 m/min
Maximum working width upt o 508 mm
Maximum PCB top side clearanceup to 120 mm
Preaheat module bottom-side
Dynamic short-wave emitter - max. 10.4 kW (power controlled)
Medium-wave emitter, max. 6 kW (controlled)
Convection module, max. 6 kW (controlled)
Dimensions: 600 mm length each
Soldering module
Capacity: ca. 9.8 kW
Solder volume: approx. 820 kg lead-free alloy
Solder temperature: max. 300 °C
Length from 4,200 to 4,950 mm
Width 1,510 mm
Height 1,565 mm
Weight: 2,200 bis 3,000 kg
Conveyor systems
Finger conveyor
Maximum conveyor speed 2.5 m/min
Maximum working width upt o 508 mm
Maximum PCB top side clearanceup to 120 mm
Preaheat module bottom-side
Dynamic short-wave emitter - max. 10.4 kW (power controlled)
Medium-wave emitter, max. 6 kW (controlled)
Convection module, max. 6 kW (controlled)
Dimensions: 600 mm length each
Soldering module
Capacity: ca. 9.8 kW
Solder volume: approx. 820 kg lead-free alloy
Solder temperature: max. 300 °C
