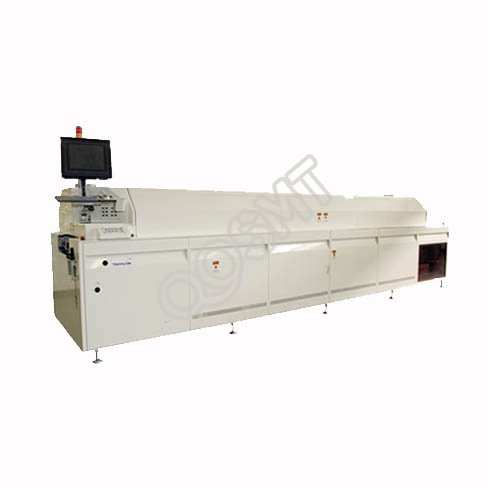

Tamura TNP25-538EM reflow soldering specifications:
Applicable substrates | MAX. W250×L330 (mm) |
MIN. W50×L50 (mm) | |
Component height | Top: 10,15,20,25,30mm |
Bottom: 10,15,20,25,30mm | |
chain width | 4mm |
nitrogen | Above 99.99% 0.4~0.7Mpa |
Above 200NL/min | |
Transmission height | 900±20mm |
Dimensions | W1310×L5300×H1370 (mm) |
weight | About 2100kg |
