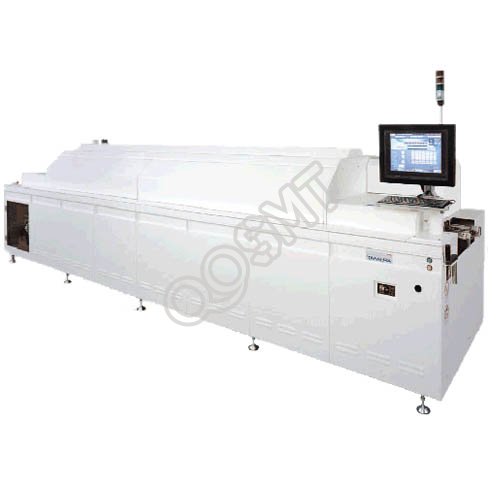

Tamura TNX25-537EM reflow soldering specifications:
Standard features |
|
· Computer hard drive reply · Oxygen concentration meter · Activated carbon regeneration unit · Temperature curve representation |
· Compatible with multiple languages (Japanese, English, Chinese) · Flux recycling machine · Substrate stall alarm · Independent control of fan frequency converter |
target substrate | MAX. W250×L330 (mm) |
MIN. W50×L50 (mm) | |
Part height | Upper 10,15,20,25,30mm |
Lower 10,15,20,25,30mm | |
carry | 4mm |
N2 gas supply source | Above 99.99% 0.4~0.7Mpa Above 300NL/min |
Substrate conveying height (rolling line) | 900±20mm |
Device Dimensions | W1310×L5300※1×H1274※2 (mm) |
Total Weight | About 2100kg |
Shipping speed | 0.3~1.5m/min |
