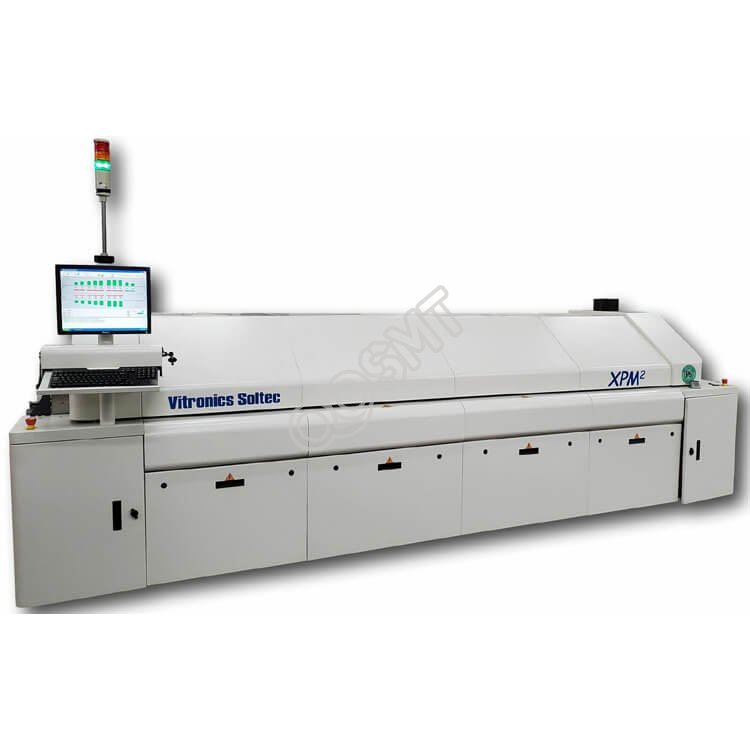

Vitronics Soltec XPM2-820 8 zones reflow oven
Heating zones: 8
Brand Name:
Vitronics Soltec
Model:
XPM2
Condition:
Used
Payment Methods
Characters:
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 8 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
13. Flux removal unit meet with environmental protection requirement.
14. Nitrogen structure is an option.
Specification:
|
Heating System |
Number of heating zones |
Top 8/Bottom 8 |
|
Number of cooling zones |
2 |
|
|
Heating passage |
3600mm |
|
|
Heating style |
Hot air |
|
|
Cooling style |
Air Oven: Forced air; Nitrogen Oven: Water Chiller |
|
|
Exhaust Volume |
10m³/min * 2 vanes |
|
|
Conveyor System |
Max. Width of PCB |
450mm |
|
Mesh belt width |
500mm |
|
|
Conveyor Direction |
L-R(or R-L) |
|
|
Process height |
900±20mm |
|
|
Conveyor type |
Mesh and chain |
|
|
Range of rail width |
0-450mm |
|
|
Conveyor speed |
0-2000mm/min |
|
|
Auto/manual Lubrication |
standard |
|
|
Fixed track |
Front rail fixed(option: rear rail fixed) |
|
|
Product clearance |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5 cables 3 phase 380V 50/60Hz |
|
Total consumption |
40kw |
|
|
Startup consumption |
38kw |
|
|
Steady consumption |
8KW |
|
|
Ramp up time |
About 20 mins |
|
|
Temp. set-point range |
Room temperature-300℃ |
|
|
Temp. control method |
PID close loop control & SSR driving |
|
|
Temp. control precision |
±1℃ |
|
|
Temp. deviation on PCB |
±2℃ |
|
|
Data storage |
Process Data and status storage(80GB) |
|
|
Nozzle plate |
Aluminum Alloy Plate |
|
|
Abnormal Alarm |
Abnormal temp. (over-temp/low temp.) |
|
|
Board dropped alarm |
Light Tower: Amber-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
5200×1400×1550mm |
|
Weight |
2200KG |
|
|
Color |
Computer grey |
