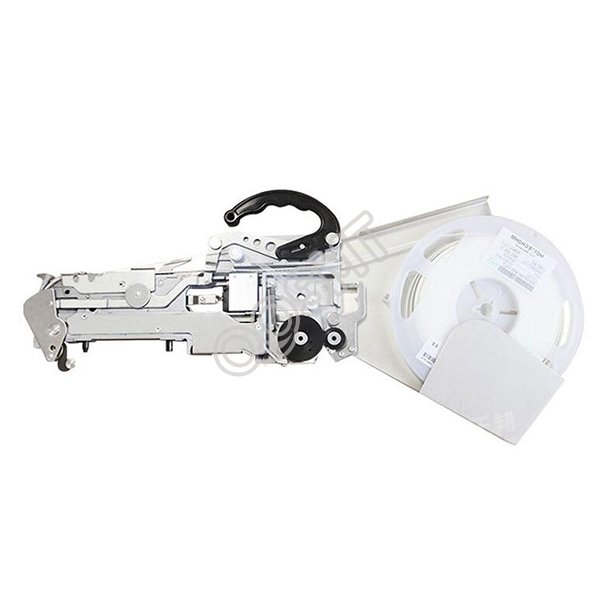

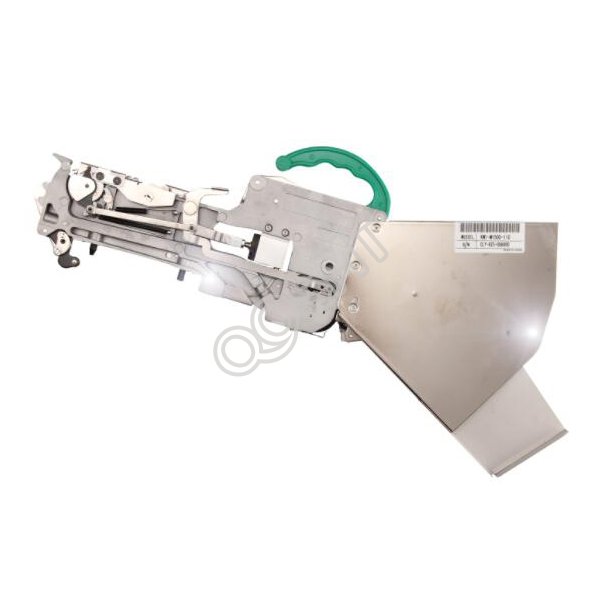

Yamaha CL Feeder 8mm 12mm 16mm 24mm SMT Feeders

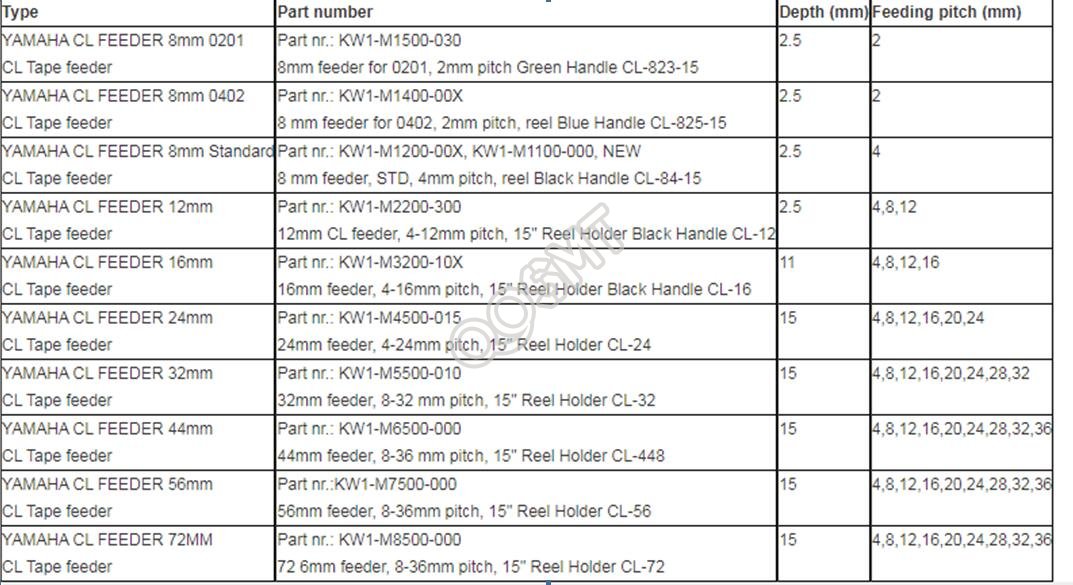

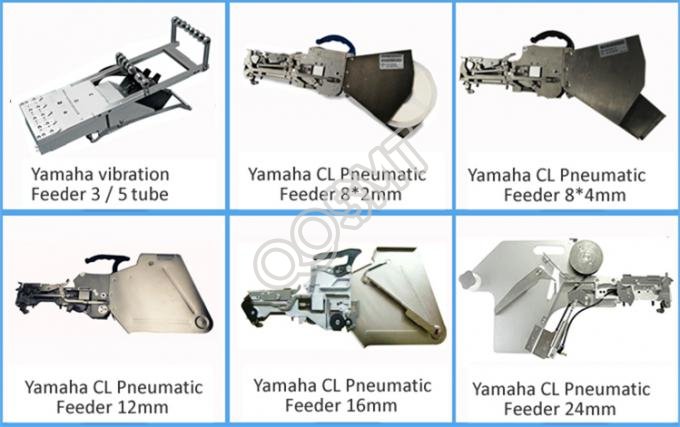

CL Series FeederYAMAHA CL Series Pneumatic Feeder, Including 8×2mm 8×4mm 12mm 16mm 24mm 32mm 44mm 56mm 72mm 88mm Feeder.
Brand Name:
Yamaha
Part Number:
KW1-M1300-000 KW1-M1100-000 KW1-M2200-300
Condition:
Original Used Customized New
Payment Methods
Yamaha CL 8X2mm feeder is suitable for 8MM wide tape packaging material 0402.
Yamaha CL 8x4mm feeder is suitable for 8MM wide tape packaging materials 0603, 1206, 0805, 3014, 3528, 4148, SOT23 and other SMD materials with a small amount of 1210 resistor LED3258 lamp beads.
Yamaha CL 12mm feeder can adjustable 12x4mm, 12x8mm, 12x12mm specifications, suitable for 12MM wide tape packaging materials, LED 5050 5730 5630 lamp beads, 4014 and other materials placement.
Yamaha Feeders such as CL 16mm, CL 24mm, CL 32mm, CL 44mm, CL 56mm , CL 72mm, CL 88mm are suitable for the placement of tape and packaging materials corresponding to the corresponding material bandwidth.
What should I do if the feed is not smooth?
1. Check the bite of the press cover

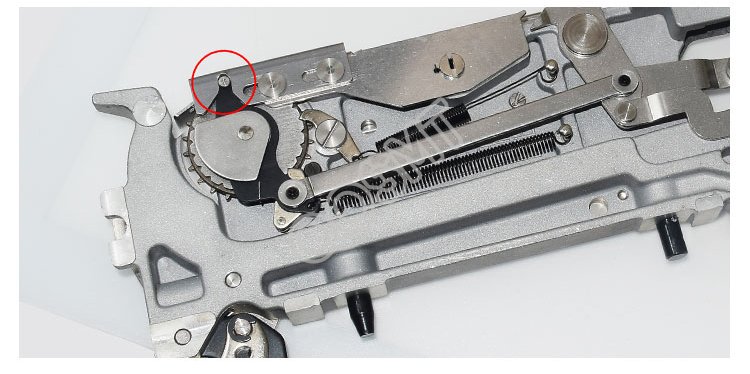

When Feida is not loading material, check the occluding state of the press cover (as shown in the figure below). If the occlusal gap is large, please check whether the press cover is deformed or the press cover is stuck with foreign objects.
2. Check the small beak components

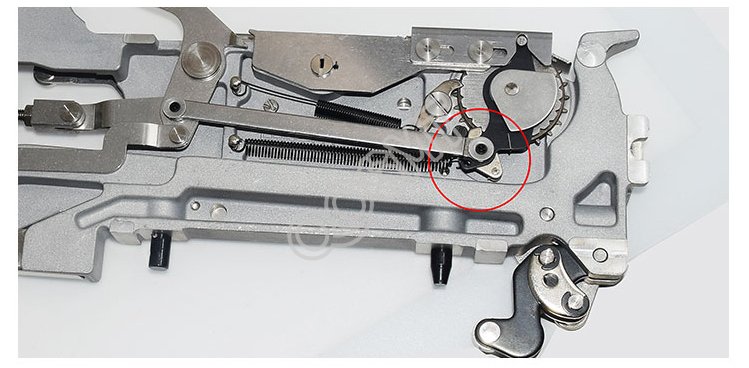

Check the small bird beak of the component (as shown in the figure below) to see if it is stuck or not smooth. When the gap between the card and the connecting rod is greater than 0.5mm, it is recommended to replace the feeder head component.
3. Add lubricating oil

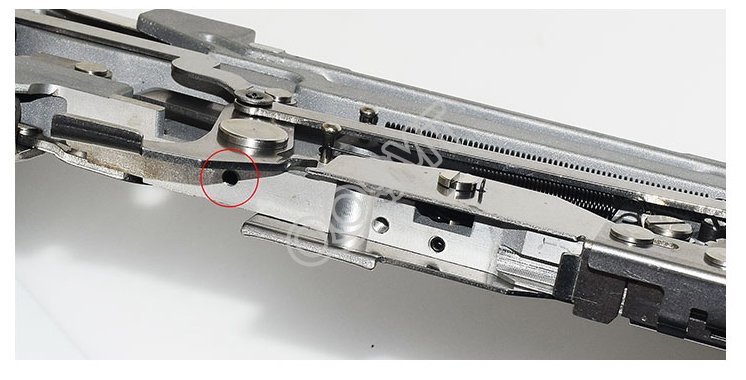

Loosen the fixing screw with a 1.5mm Allen key on the side of the stop claw (as shown in the figure), and add a small amount of lubricant.
How to solve the problem that feeder does not roll the material?
1. Check the reel

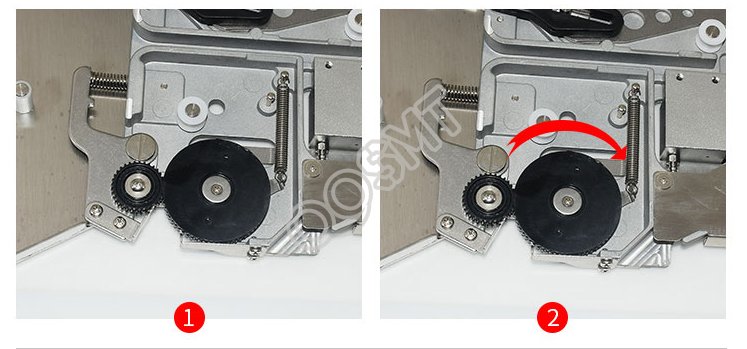

First, open the small one-way wheel (as shown in Figure 1), and turn the large take-up wheel clockwise (as shown in Figure 2). When the wheel is stuck and cannot rotate, increase the force to rotate appropriately:
(1) It is normal when the reel does not move;
(2) When the reel is rotating, it is damaged and needs to be replaced.
2. Check the one-way wheel

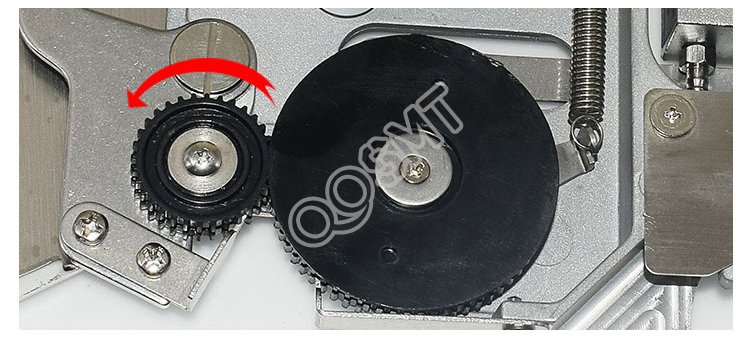

First open the small one-way wheel and turn the small one-way wheel counterclockwise (as shown in the picture):
(1) It is normal when the one-way rotation does not move;
(2) When the one-way wheel rotates, it is damaged and needs to be replaced.
Yamaha CL 8x4mm feeder is suitable for 8MM wide tape packaging materials 0603, 1206, 0805, 3014, 3528, 4148, SOT23 and other SMD materials with a small amount of 1210 resistor LED3258 lamp beads.
Yamaha CL 12mm feeder can adjustable 12x4mm, 12x8mm, 12x12mm specifications, suitable for 12MM wide tape packaging materials, LED 5050 5730 5630 lamp beads, 4014 and other materials placement.
Yamaha Feeders such as CL 16mm, CL 24mm, CL 32mm, CL 44mm, CL 56mm , CL 72mm, CL 88mm are suitable for the placement of tape and packaging materials corresponding to the corresponding material bandwidth.
What should I do if the feed is not smooth?
1. Check the bite of the press cover
When Feida is not loading material, check the occluding state of the press cover (as shown in the figure below). If the occlusal gap is large, please check whether the press cover is deformed or the press cover is stuck with foreign objects.
2. Check the small beak components
Check the small bird beak of the component (as shown in the figure below) to see if it is stuck or not smooth. When the gap between the card and the connecting rod is greater than 0.5mm, it is recommended to replace the feeder head component.
3. Add lubricating oil
Loosen the fixing screw with a 1.5mm Allen key on the side of the stop claw (as shown in the figure), and add a small amount of lubricant.
How to solve the problem that feeder does not roll the material?
1. Check the reel
First, open the small one-way wheel (as shown in Figure 1), and turn the large take-up wheel clockwise (as shown in Figure 2). When the wheel is stuck and cannot rotate, increase the force to rotate appropriately:
(1) It is normal when the reel does not move;
(2) When the reel is rotating, it is damaged and needs to be replaced.
2. Check the one-way wheel
First open the small one-way wheel and turn the small one-way wheel counterclockwise (as shown in the picture):
(1) It is normal when the one-way rotation does not move;
(2) When the one-way wheel rotates, it is damaged and needs to be replaced.
